Stainless Steel Male Stud Non Return Valve - Metric Parallel Thread, Heavy Duty
Stainless Steel Male Stud Non Return Valve - Metric Parallel Thread, Heavy Duty
SKU:FIT-363127
High-quality Stainless Steel Male Stud Non Return Valve for heavy-duty applications, ensuring reliability and precision.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve - Metric Parallel Thread, Heavy Duty
$79.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve - Metric Parallel Thread, Heavy Duty
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve with Elastomer Seal is designed for heavy-duty applications, with a nominal operating pressure of 250 bar. Featuring a 30.0mm tube diameter and M-thread size of 42x2, this valve ensures reliable performance. With dimensions meeting industry standards and made of high-quality stainless steel, this valve offers durability and precision in hydraulic systems.

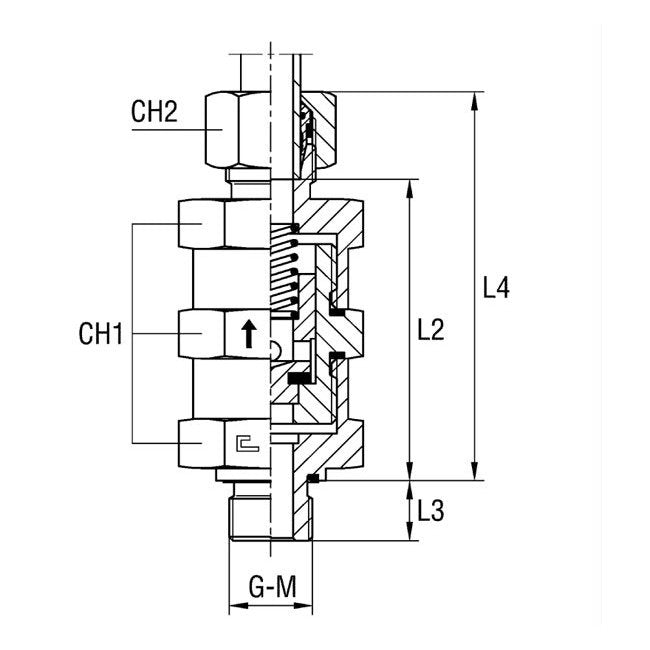

Product Specifications
Specifications Ch1
70 mm
Specifications Ch2
50 mm
Specifications Diameter Pass
25 mm
Specifications L2
93.5 mm
Specifications L3
20.0 mm
Specifications L4
120 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
30.0 mm
