Stainless Steel Male Stud Non Return Valve - UNF/UN-2A
Stainless Steel Male Stud Non Return Valve - UNF/UN-2A
SKU:VAL-a66c45
Durable Stainless Steel Non Return Valve for high-pressure hydraulic systems
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve - UNF/UN-2A
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve - UNF/UN-2A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve features a durable construction suitable for heavy-duty applications with a nominal operating pressure of 400 bar. With precise dimensions and Stainless Steel material, it ensures reliable performance and longevity. Compliant with industry standards, it is ideal for hydraulic systems requiring a Male Stud Non Return Valve with O-ring Thread UNF/UN-2A configuration.
Ready to Grow Without Cash Flow Constraints?

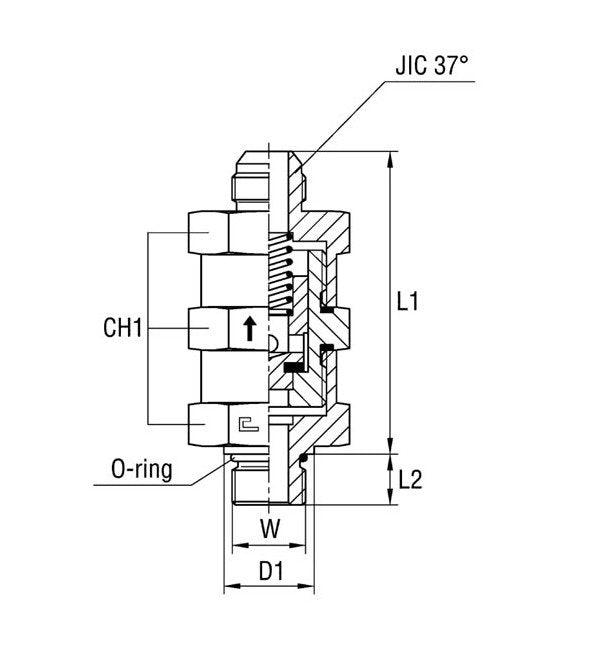

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
16.8 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
62.5 mm
Specifications L2
9.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1/2-20
Specifications W Tube Diameter
5/16 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
