The Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A is a durable hydraulic check valve suitable for extra light duty to heavy duty applications, with a nominal operating pressure of 240 bar. Crafted from high-quality stainless steel, this valve ensures reliability and longevity. With precise dimensions and JIC 37° thread, it guarantees secure connections and efficient performance. This valve is designed for industrial use, meeting stringent standards for quality and performance.
Product Specifications

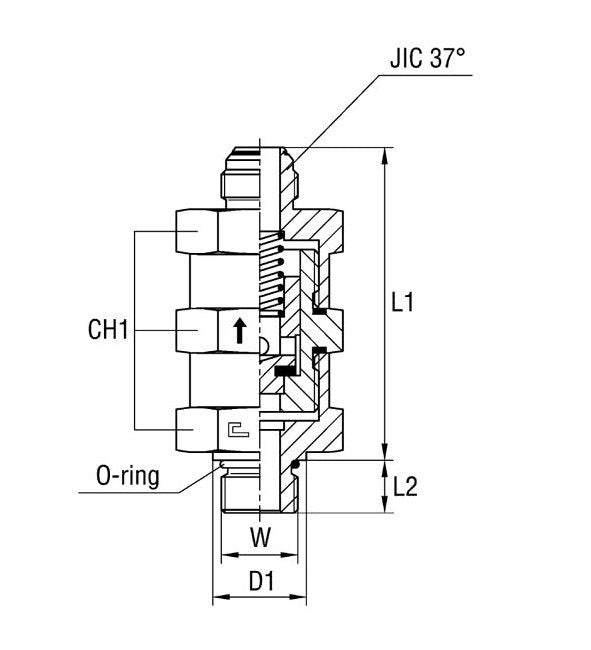

Specifications Ch1
70 mm
Specifications D1
49.8 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
108.3 mm
Specifications L2
15.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 5/8-12
Specifications W Tube Diameter
1 1/4 in
