Stainless Steel Male Stud Non Return Valve - UNF/UN-2A

Name: Stainless Steel Male Stud Non Return Valve - UNF/UN-2A
Brand: World Wide Metric, Inc.
SKU: FIT-4a89e3
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-4a89e3

Durable Stainless Steel Non Return Valve for hydraulic applications. Premium quality with 400 bar operating pressure.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A is designed for reliable hydraulic applications. Constructed with premium stainless steel, this valve ensures durability and high performance under various pressure settings. With a nominal operating pressure of 400 bar, multiple duty options, and precise dimensions, this valve meets stringent industry standards and is ideal for both consumer and institutional use.

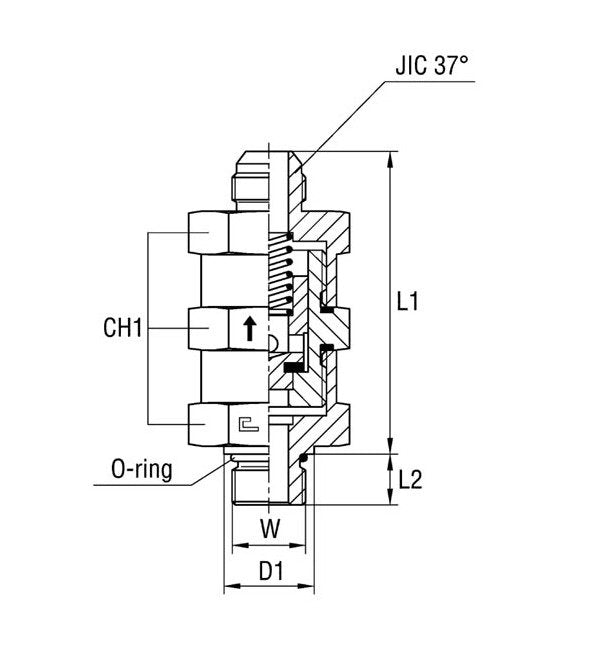

Product Specifications

Specifications Ch1

19.0 mm

Specifications D1

13.8 mm

Specifications Diameter Pass

2.8 mm

Specifications Jic 37 Thread

7/16-20

Specifications L1

62.5 mm

Specifications L2

9.1 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

6 mm

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Thread Size

7/16-20

Specifications W Tube Diameter

1/4 in
