Stainless Steel Male Stud Non Return Valve - UNF/UN-2A
Stainless Steel Male Stud Non Return Valve - UNF/UN-2A
SKU:FIT-a73cd0
Premium Stainless Steel Male Stud Non Return Valve for hydraulic systems. Reliable, durable, and industry-compliant.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve - UNF/UN-2A
$79.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve - UNF/UN-2A
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A offers unparalleled reliability and durability in hydraulic systems. Designed for extra light to heavy-duty applications, this valve boasts a nominal operating pressure of 240 bar. With precise dimensions and quality stainless steel construction, it ensures leak-free performance. Compliant with industry standards, this valve is ideal for both consumer and institutional buyers seeking top-tier hydraulic components.

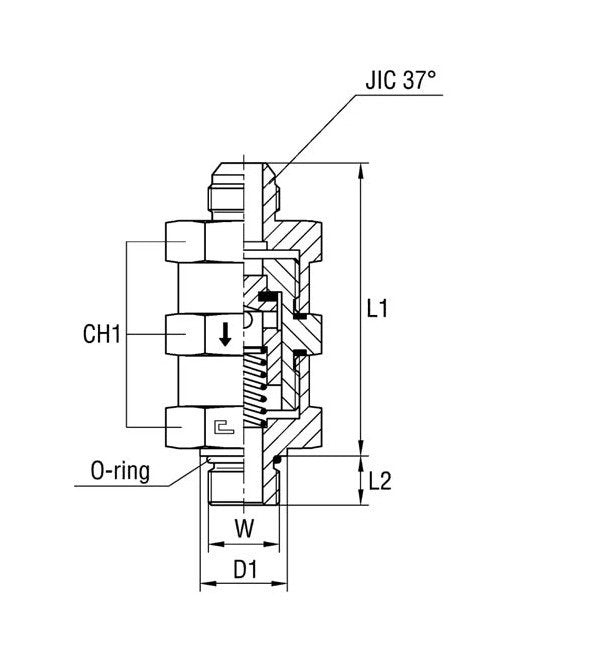

Product Specifications
Specifications Ch1
70 mm
Specifications D1
54.8 mm
Specifications Diameter Pass
29 mm
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
111.5 mm
Specifications L2
15.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 7/8-12
Specifications W Tube Diameter
1 1/2 in
