Stainless Steel Male Stud Non Return Valve UNF/UN-2A
Stainless Steel Male Stud Non Return Valve UNF/UN-2A
SKU:FIT-d8a8ca
High-quality stainless steel male stud non-return valve for heavy-duty hydraulic applications. Reliable, durable, and compliant with industry standards.
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve UNF/UN-2A
$44.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve UNF/UN-2A
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body is a high-quality hydraulic check valve suitable for heavy-duty applications. With a nominal operating pressure of 400 bar, stainless steel construction, and precise dimensions, this valve ensures reliable performance and durability. Its advanced design meets stringent industry standards, making it a versatile and dependable choice for both consumer and institutional buyers.

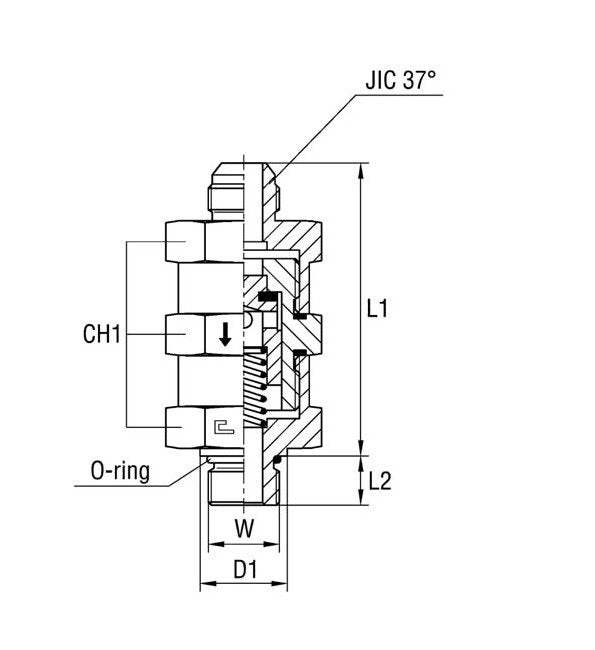

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
13.8 mm
Specifications Diameter Pass
2.8 mm
Specifications Jic 37 Thread
7/16-20
Specifications L1
62.5 mm
Specifications L2
9.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
6 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
7/16-20
Specifications W Tube Diameter
1/4 in
