Stainless Steel Male Stud Non Return Valve with Elastomer Seal, BSP Parallel - Equipped B3 Ring
Stainless Steel Male Stud Non Return Valve with Elastomer Seal, BSP Parallel - Equipped B3 Ring
SKU:FIT-8c5cde
High-quality Stainless Steel Non Return Valve for hydraulic systems - BSP Parallel Threads for reliable performance
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve with Elastomer Seal, BSP Parallel - Equipped B3 Ring
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve with Elastomer Seal, BSP Parallel - Equipped B3 Ring
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve with Elastomer Seal features a light-duty design with a nominal operating pressure of 100 bar. With a tube diameter of 28 mm, this valve ensures reliable performance. Crafted from high-quality stainless steel, it offers durability and corrosion resistance. The BSP parallel threads and equipped B3 Ring enhance its functionality, making it a reliable choice for hydraulic systems in various applications.

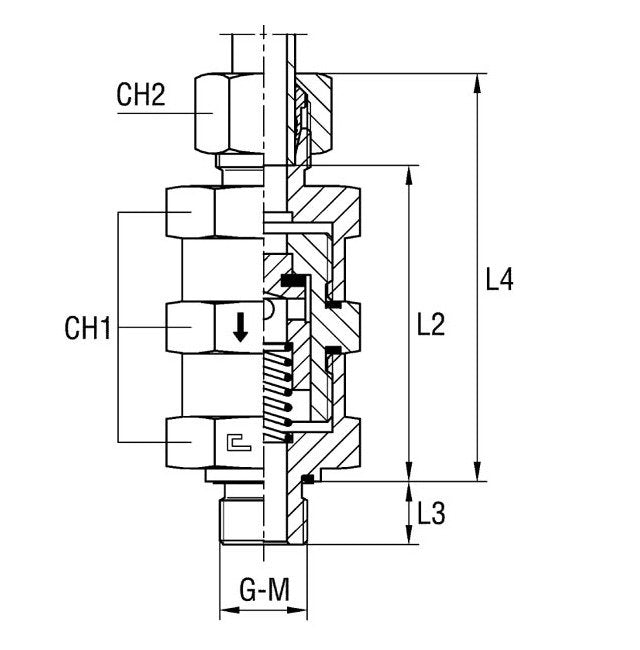

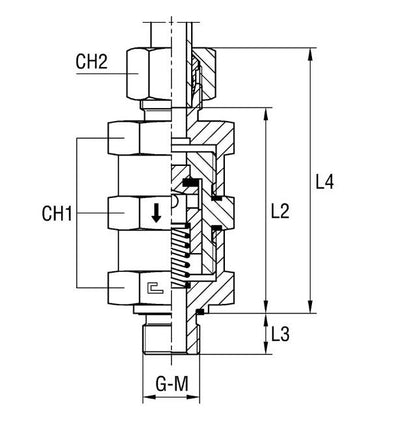

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
41 mm
Specifications Diameter Pass
18 mm
Specifications G Thread Size
1
Specifications L2
75.5 mm
Specifications L3
18.0 mm
Specifications L4
92 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
28 mm
