Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:VAL-0a0798
Durable Stainless Steel Non Return Valve for hydraulic systems, with 350 bar pressure capacity. Reliable, corrosion-resistant design.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve features a sturdy construction designed for durability in hydraulic systems. With a nominal operating pressure of 350 bar, this valve offers reliability in heavy-duty applications. The O-ring thread UNF/UN-2A and stainless steel material ensure secure sealing and resistance to corrosion, meeting stringent industry standards for performance and longevity.

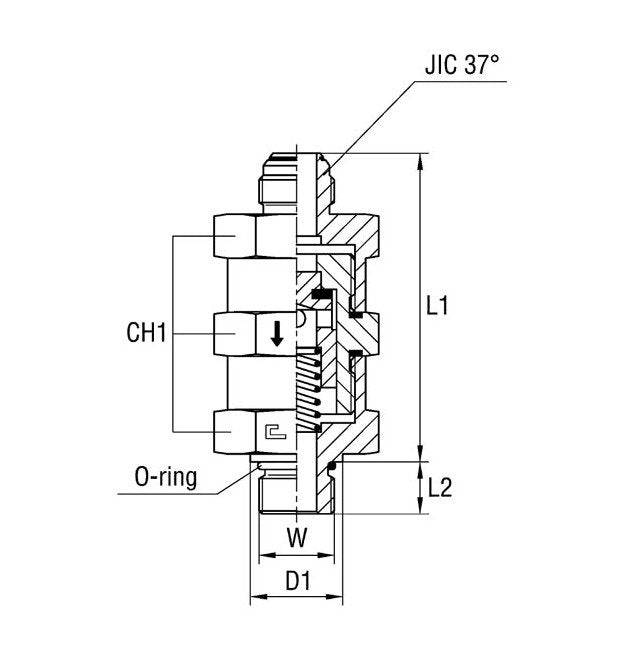

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
16.8 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
9/16-18
Specifications L1
62.1 mm
Specifications L2
10.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
10 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
9/16-20
Specifications W Tube Diameter
3/8 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
