The Stainless Steel Male Stud Non-Return Valve with O-ring Thread UNF/UN-2A is a durable and reliable hydraulic check valve suitable for extra light duty to heavy duty applications. With a nominal operating pressure of 290 bar, this valve offers seamless performance. Crafted from high-grade stainless steel, it ensures longevity and corrosion resistance. The precision engineering of this valve guarantees secure sealing, making it a go-to choice for hydraulic systems in various industries.

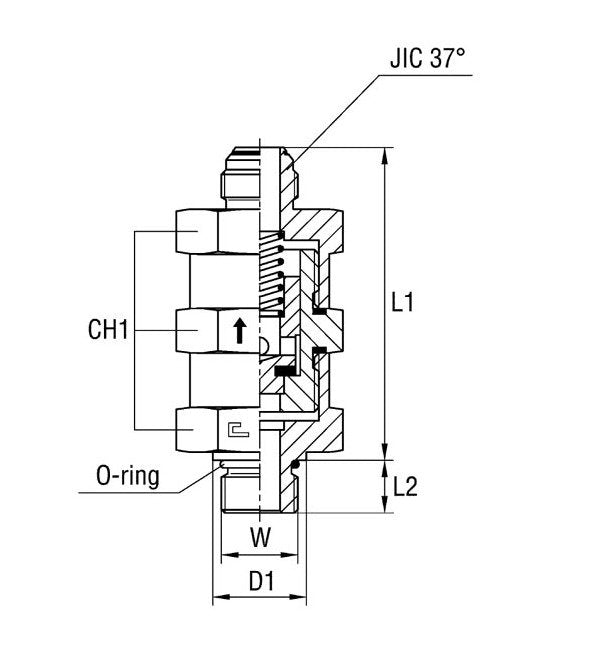

Product Specifications
Specifications Ch1
50 mm
Specifications D1
40.8 mm
Specifications Diameter Pass
18 mm
Specifications Jic 37 Thread
1 5/16-12
Specifications L1
89.1 mm
Specifications L2
15.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
25 mm
Specifications Nominal Operating Pressure
290 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 5/16-12
Specifications W Tube Diameter
1 in
