Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:FIT-497a58
Premium stainless steel non return valve for reliable flow control in heavy-duty applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$89.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A is a rugged and reliable hydraulic check valve designed for heavy-duty industrial applications. With a nominal operating pressure of 290 bar and precise dimensions, this valve ensures seamless flow control and leakage prevention. Crafted from high-quality stainless steel, it offers exceptional durability and resistance to corrosion, making it ideal for long-term use in demanding environments.

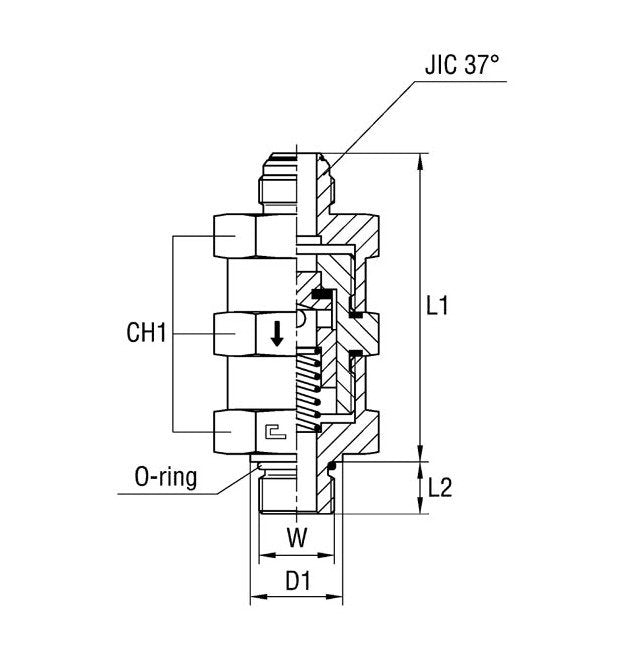

Product Specifications
Specifications Ch1
50 mm
Specifications D1
40.8 mm
Specifications Diameter Pass
18 mm
Specifications Jic 37 Thread
1 5/16-12
Specifications L1
89.1 mm
Specifications L2
15.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
25 mm
Specifications Nominal Operating Pressure
290 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 5/16-12
Specifications W Tube Diameter
1 in
