Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:FIT-a0ea18
Durable Stainless Steel Male Stud Non Return Valve for high-pressure hydraulic systems
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve is designed for extra light to heavy-duty applications with a nominal operating pressure of 350 bar. Featuring a 12mm tube diameter, 3/4-16 thread size, and stainless steel construction, this valve ensures reliable performance and durability. Compliant with Federal/DoD procurement standards and industry-specific certifications, it meets the highest quality requirements for institutional buyers.

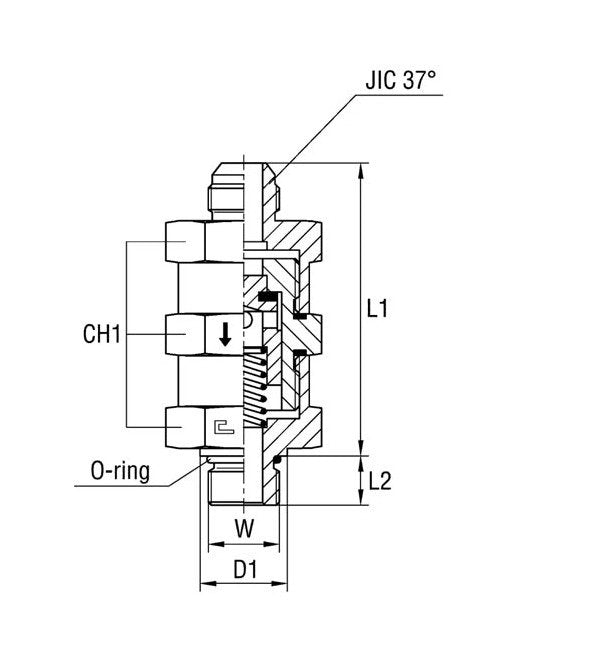

Product Specifications
Specifications Ch1
32 mm
Specifications D1
21.8 mm
Specifications Diameter Pass
8 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
70.7 mm
Specifications L2
11.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
3/4-16
Specifications W Tube Diameter
1/2 in
