Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A

Name: Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Brand: World Wide Metric, Inc.
SKU: FIT-3ffb41
Price: 59.99 USD
Availability: OutOfStock

SKU:FIT-3ffb41

Reliable Stainless Steel Non Return Valve for hydraulic systems. Nominal Operating Pressure: 350 bar

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A is a robust hydraulic check valve designed for extra light duty to heavy duty applications. With a nominal operating pressure of 350 bar, this valve ensures reliable performance. Made of high-quality stainless steel, it features precise dimensions including M - Tube Diameter of 18mm, W - Tube Diameter of 3/4 in, and a threaded W - Thread Size of 1 1/16-12. Meeting stringent industry standards, this valve is a dependable choice for hydraulic systems.

Product Specifications

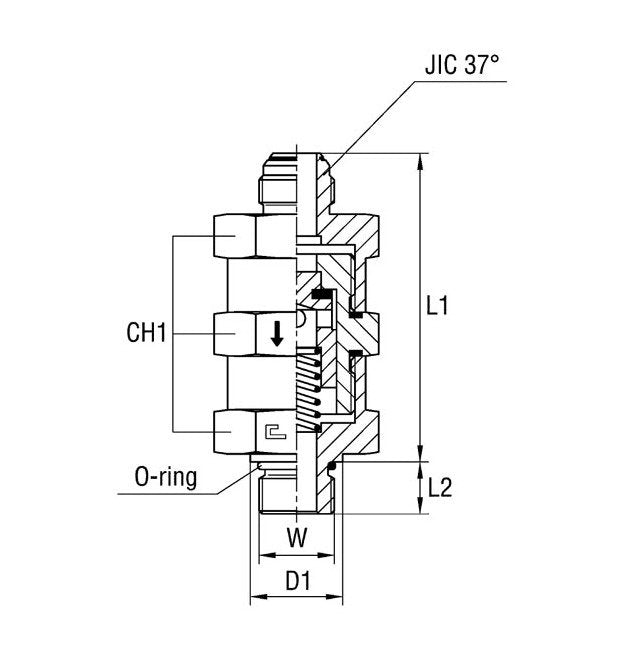

Specifications Ch1

50 mm

Specifications D1

31.8 mm

Specifications Diameter Pass

14.5 mm

Specifications Jic 37 Thread

1 1/16-12

Specifications L1

87.9 mm

Specifications L2

15.1 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

18 mm | 20 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Thread Size

1 1/16-12

Specifications W Tube Diameter

3/4 in

Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
