Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:FIT-a66c45
Trust the Stainless Steel Male Stud Non Return Valve: reliable, durable, and perfect for varying pressure requirements.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body is a reliable hydraulic check valve suitable for diverse pressure needs including Extra Light Duty, Heavy Duty, and Light Duty applications. With a Nominal Operating Pressure of 400 bar, this valve ensures secure tube connections with a 8mm M - Tube Diameter and 5/16in W - Tube Diameter. Crafted from durable Stainless Steel, it meets stringent industry standards for durability and performance.
Ready to Grow Without Cash Flow Constraints?

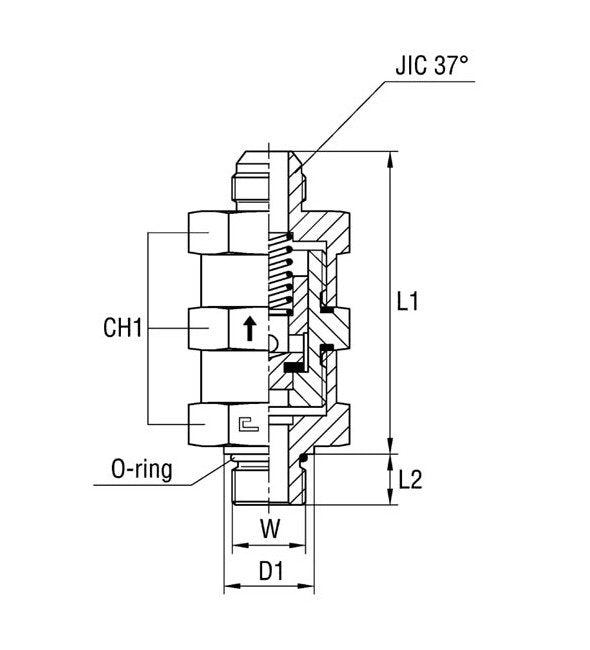

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
16.8 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
62.5 mm
Specifications L2
9.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1/2-20
Specifications W Tube Diameter
5/16 in
