Stainless Steel Male Stud Non-Return Valve with O-Ring Thread UNF/UN-2A - Hydraulic Check Valve
Stainless Steel Male Stud Non-Return Valve with O-Ring Thread UNF/UN-2A - Hydraulic Check Valve
SKU:FIT-b6d55d
Enhance hydraulic systems with our durable Stainless Steel Male Stud Non-Return Valve for reliable and efficient performance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non-Return Valve with O-Ring Thread UNF/UN-2A - Hydraulic Check Valve
$45.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non-Return Valve with O-Ring Thread UNF/UN-2A - Hydraulic Check Valve
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your hydraulic systems with our Stainless Steel Male Stud Non-Return Valve. This valve withstands pressures up to 350 bar, suitable for Heavy Duty applications. Crafted from durable stainless steel, it ensures long-lasting performance. With precise dimensions and compliant with industry standards, this valve guarantees reliable and efficient operations.

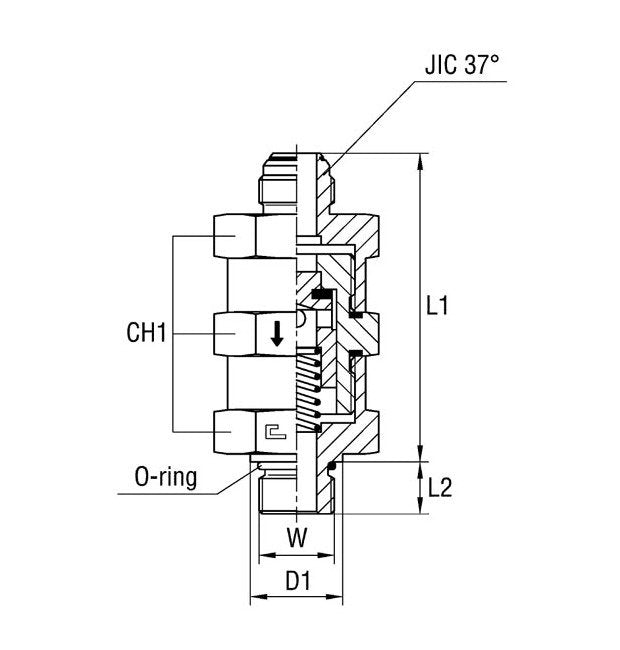

Product Specifications
Specifications Ch1
32 mm
Specifications D1
21.8 mm
Specifications Diameter Pass
8 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
70.7 mm
Specifications L2
11.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
3/4-16
Specifications W Tube Diameter
1/2 in
