Stainless Steel Male x Male Round-Handle Mini Needle Valve 1/4" 6000 psi
Stainless Steel Male x Male Round-Handle Mini Needle Valve 1/4" 6000 psi
SKU:MIN-7987a9
Precision-engineered Stainless Steel Male x Male Mini Needle Valve with 6000 psi rating for reliable performance in industrial applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Male x Male Round-Handle Mini Needle Valve 1/4" 6000 psi
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male x Male Round-Handle Mini Needle Valve 1/4" 6000 psi
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male x Male Round-Handle Mini Needle Valve is meticulously crafted for precision control in industrial applications. Featuring a PTFE stem packing with Fluorocarbon (FKM) O-Ring and a POM/Acetal Soft Seat, this valve ensures leak-free performance. With a pressure rating of 6000 psi and durable stainless steel construction, it offers reliability and longevity. The round handle design provides ease of operation, although it is not recommended for pressures exceeding 4000 psi. Ideal for fluid control in demanding settings, this needle valve excels in accuracy and durability.
Product Specifications
Technical Specs Body Material
316 Stainless Steel
Technical Specs Bonnet Material
316 Stainless

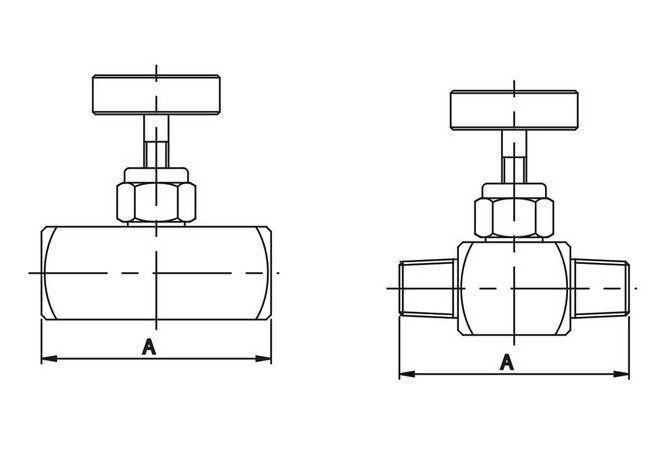

Technical Specs Dimension A
1.85 in
Technical Specs Dimension B
0.47 in
Technical Specs Dimension C
1.97 in
Technical Specs Dimension D
1.02 in
Technical Specs Dimension E
0.75 in
Technical Specs Handle Material
304 Stainless
Technical Specs Material
Stainless Steel
Technical Specs Pressure Rating
6000 psi
Technical Specs Size
1/4 x 1/4 in
Technical Specs Stem Material
316 Stainless
Technical Specs Thread Type
Male x Male
