Stainless Steel Marine Toggle Jaw - 2800 lbs Safe Working Load

Name: Stainless Steel Marine Toggle Jaw - 2800 lbs Safe Working Load
Brand: Lexco Cable Manufacturing
SKU: WIR-247a38
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-247a38

Enhance marine rigging safety with our Stainless Steel Marine Toggle Jaw - 2800 lbs SWL, prevents wire bending, pins included.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

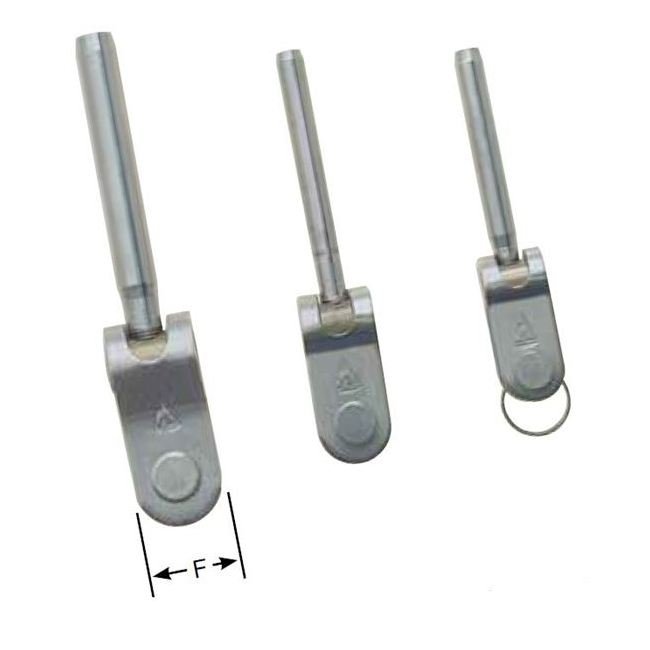

Upgrade your marine rigging setup with our Stainless Steel Marine Toggle Jaw, rated to handle a safe working load of 2800 lbs. This Toggle Jaw ensures optimal wire rope integrity, preventing adverse bending, and includes pins for secure attachment. Compliant with mil spec dimensions, it is recommended for high load applications, meeting rigorous safety standards.

Product Specifications

Note Note

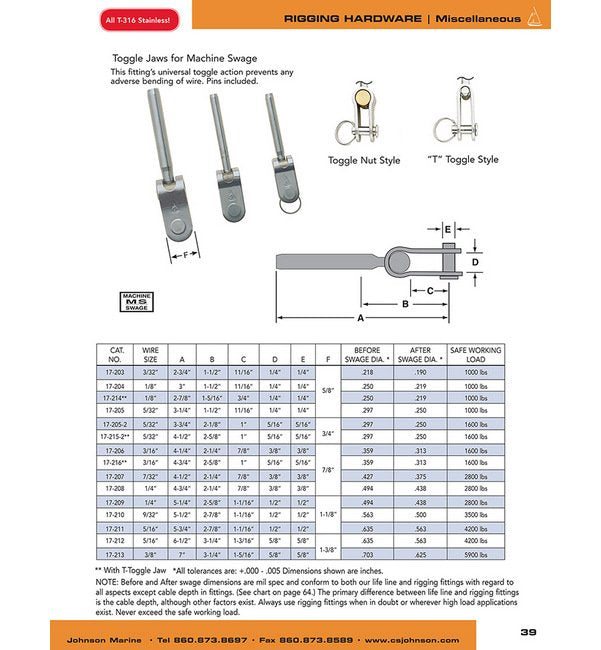

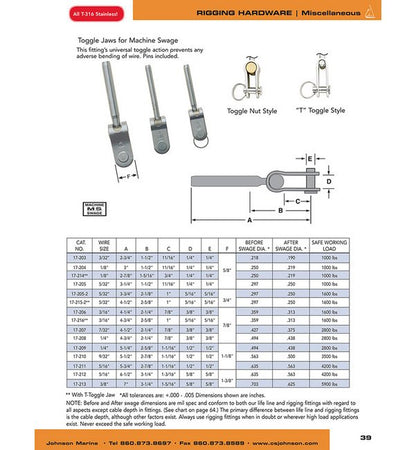

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

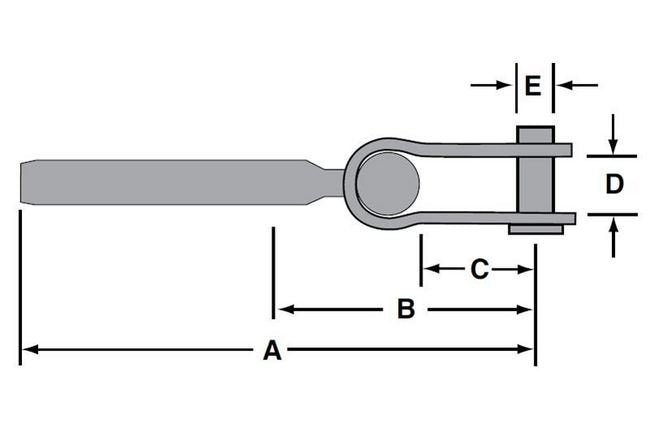

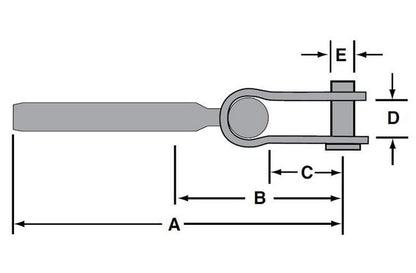

Specifications A

4-1/2 "

Specifications After Swage Dia

0.375 "

Specifications B

2.25 "

Specifications Before Swage Dia

0.427 "

Specifications C

7/8 "

Specifications D

3/8 "

Specifications E

3/8 "

Specifications F

7/8 "

Specifications Safe Working Load

2800 lbs

Specifications Wire Size

7/32 "

CAGE

0T9L4

NAICS

332510

PSC

4030
