Stainless Steel Marine Toggle Jaw - Load Rated 1600 lbs
Stainless Steel Marine Toggle Jaw - Load Rated 1600 lbs
SKU:WIR-39a35c
Durable Stainless Steel Marine Toggle Jaw for 3/16" wire ropes, load rated at 1600 lbs. Prevents wire bending with included pins.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Marine Toggle Jaw - Load Rated 1600 lbs
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Marine Toggle Jaw - Load Rated 1600 lbs
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

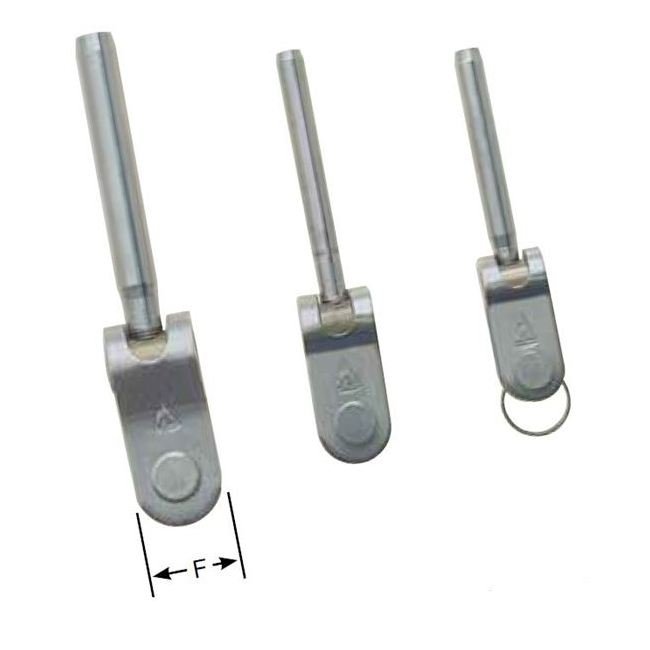

The Stainless Steel Marine Toggle Jaw is a durable fitting with universal toggle action to prevent wire bending. Designed to be crimped onto 3/16" wire ropes, it comes with included pins. With a safe working load of 1600 lbs, this toggle jaw meets MIL spec dimensions for rigging and lifeline fittings, ensuring reliability in high-load applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

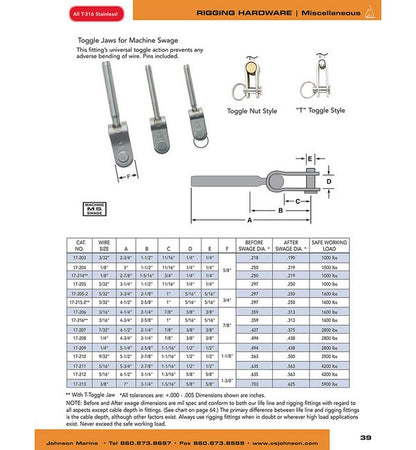

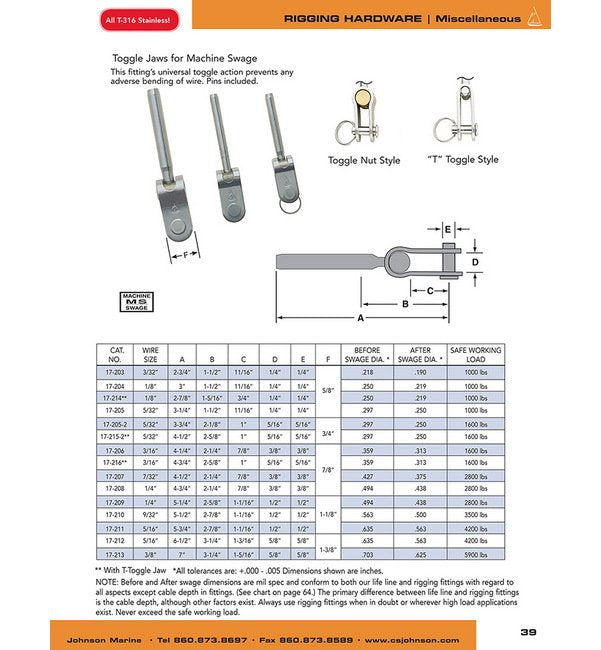

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

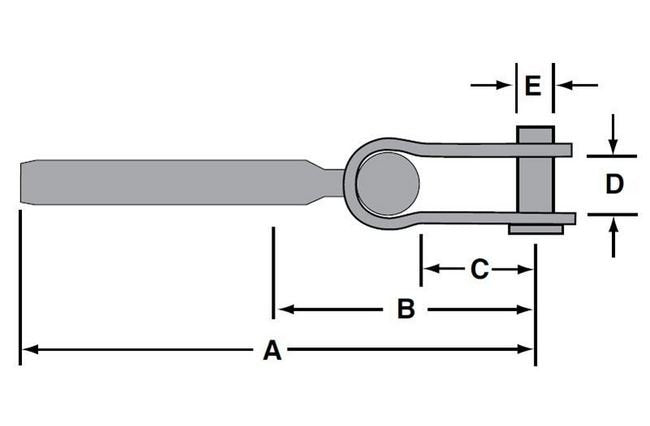

Specifications A
4-1/4 "
Specifications After Swage Dia
0.313 "
Specifications B
2.25 "
Specifications Before Swage Dia
0.359 "
Specifications C
7/8 "
Specifications D
3/8 "
Specifications E
3/8 "
Specifications F
7/8 "
Specifications Safe Working Load
1600 lbs
Specifications Wire Size
3/16 "
CAGE
0T9L4
NAICS
332510
PSC
4030
