Stainless Steel Metric Couplings - Helical W Series
Stainless Steel Metric Couplings - Helical W Series
High-strength stainless steel metric couplings for precise torque transmission in diverse applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Stainless Steel Metric Couplings - Helical W Series
$45.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Metric Couplings - Helical W Series
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

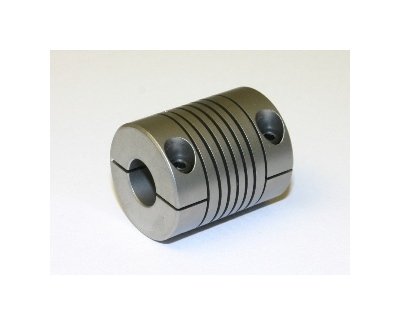

The Helical W Series Stainless Steel Couplings are designed for precision and durability in metric-based designs, offering superior performance in various applications. Constructed from 17-4 High Strength Stainless Steel with metric dimensions and fasteners, these couplings provide exceptional torque transmission capabilities. With an outside diameter of 50mm, bore diameter of 19mm, and a momentary dynamic torque of 31 N·m, these couplings are ideal for driving components with different torque requirements. Whether for encoders, tachometers, lead screws, or pumps, the W Series combines the best features of the A and H Series to meet diverse needs with reliability and efficiency.
Product Specifications
Additional Information 0
Additional-Information | Helical W Series Stainless Steel Couplings (w7c25) | Ordering Information-W Series
Customize 0
Custom Designs
Specifications Bore Depth
17.00 mm
Specifications Bore Designator
19 mm
Specifications Bore Diameter
19.00 mm
Specifications Center Line
7.5 mm
Specifications Features
Metric dimensions and fastenersAvailable in 7075-T6 aluminum alloy or 17-4 PH corrosion-resistant steelGeneral purposeIf you are working in the metric world, the W Series is for you. It combines the best features of the A Series and the H Series, with the convenience of metric dimensions and fasteners for your metric based designs. The W-Series can be used in a wide range of applications from driving components with light torque requirements, such as encoders and tachometers (aluminum), to lead screws and pumps requiring greater torque (stainless steel).
Specifications Finish
Natural
Specifications Inertia
21 x 10-5 kg.cm.sec2
Specifications Length L
54 mm
Specifications Material
17-4 High Strength Stainless Steel
Specifications Max Bore Diameter
38.10 mm
Specifications Max Size
20.00 mm
Specifications Min Size
14.00 mm
Specifications Momentary Dynamic Torque
31 N·m
Specifications Outside Diameter D
50 mm
Specifications Outside Diameter Designator
50
Specifications Product Type
Coupling
Specifications Screw Size
M6 x 1
Specifications Seating Torque
7.7 N·m
Specifications Series
W7
Specifications Torsional Rate
0.16 degree/N·m
