Stainless Steel Metric Parallel Male Stud Coupling with Elastomer Seal
Stainless Steel Metric Parallel Male Stud Coupling with Elastomer Seal
SKU:FIT-0c5827
Heavy-duty stainless steel male stud coupling for high-pressure industrial use, compliant with DIN 2353 standards
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Metric Parallel Male Stud Coupling with Elastomer Seal
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Metric Parallel Male Stud Coupling with Elastomer Seal
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Metric Parallel Male Stud Coupling with Elastomer Seal is a heavy-duty fitting designed for industrial applications. Made of durable stainless steel, this fitting ensures reliable performance under high pressure conditions up to 400 bar. With precise measurements including tube diameter, M-thread size, and compliance with DIN 2353 standards, this coupling offers exceptional quality and longevity for a wide range of hydraulic systems.
Ready to Grow Without Cash Flow Constraints?

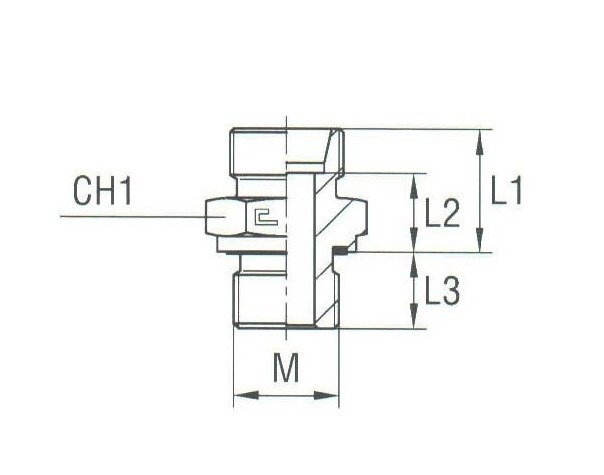

Product Specifications
Specifications Ch1
41 mm
Specifications L1
35.0 mm
Specifications L2
23.0 mm
Specifications L3
18.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
33x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
25.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread Metric Parallel
