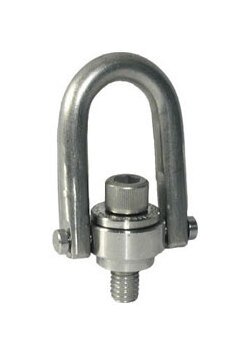

Stainless Steel Metric Safety Engineered Hoist Ring
Stainless Steel Metric Safety Engineered Hoist Ring
SKU:HOI-e173b2
Highly durable Stainless Steel Metric Hoist Ring with 360° swivel, 180° pivot, and 5:1 safety factor. Ideal for corrosive environments. Load rated: 2425 lbs.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Stainless Steel Metric Safety Engineered Hoist Ring
$129.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Metric Safety Engineered Hoist Ring
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Metric Safety Engineered Hoist Ring is meticulously crafted to meet the highest industrial standards. Made from 300 Series Stainless Steel with a 5:1 safety factor, this hoist ring offers a 360° swivel and 180° pivot for versatile lifting applications. It undergoes rigorous testing, with 100% Liquid Penetrate Testing per ASTM-E 1417. Suitable for corrosive, cryogenic, or high-temperature environments, this hoist ring is clean and passive per MIL-S-5002, QQ-P-35 Type II. With a load rating of 2425 pounds (1100 kg), this hoist ring ensures safety and durability.
Product Specifications
Specifications A Radius
22.40 mm
Specifications B Base Height
31.00 mm
Specifications Country Of Origin
US
Specifications C Ring Width
82.50 mm
Specifications D Diameter
19.00 mm
Specifications E Thread Length
30.00 mm
Specifications Finish
Stainless Steel
Specifications F Height
121.40 mm
Specifications G Thread Size
M20x2.5
Specifications H Inside Clearance
51.40 mm
Specifications I Overall Width
89.40 mm
Specifications J
38.00 mm
Specifications Material
Stainless Steel
Specifications Pivot
180 º
Specifications Ps Load Rated
2425 Pounds (1100 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications Torque
67.50 N·m
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
1.16 kg
