Stainless Steel Military Specification Studs MS21259
Stainless Steel Military Specification Studs MS21259
SKU:MIL-128d10
High-quality Stainless Steel Studs MS21259 for military applications. Corrosion-resistant finish, precision-threaded, and compliant with AN 666 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Military Specification Studs MS21259
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Military Specification Studs MS21259
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

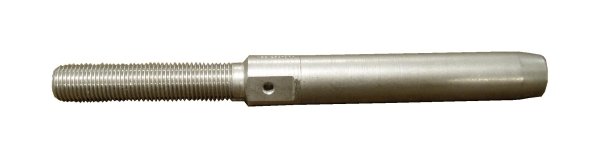

The Stainless Steel Studs MS21259 offers high-quality construction for durability and reliability in military applications. Designed to fit 9/32 inch wire rope, with a corrosion-resistant finish, and precision-threaded for secure fastening. Compliant with AN 666 standards, these studs provide dependable performance in demanding environments.

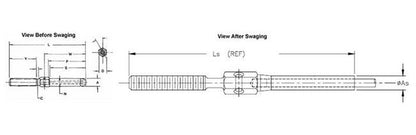

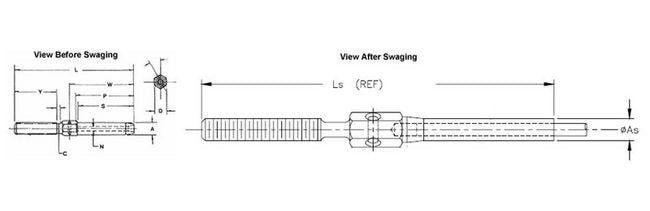

Product Specifications
Specifications As Diam
.500
Specifications A Diam
.563
Specifications C Diam In
.405
Specifications D In
.625
Specifications Lbs Per Piece
.265
Specifications Ls Ref
5.75
Specifications L 015 000 In
5.931
Specifications N Diam
.297
Specifications P In
2.761
Specifications R 005 000 Diameter In
.098
Specifications S 062 000 In
2.688
Specifications Thread Size B
7/16-20
Specifications To Fit Wire Rope Dia In
9/32
Specifications W 016 In
3.076
Specifications Y 063 000 In
1.875
CAGE
0T9L4
NAICS
332510
PSC
4030
