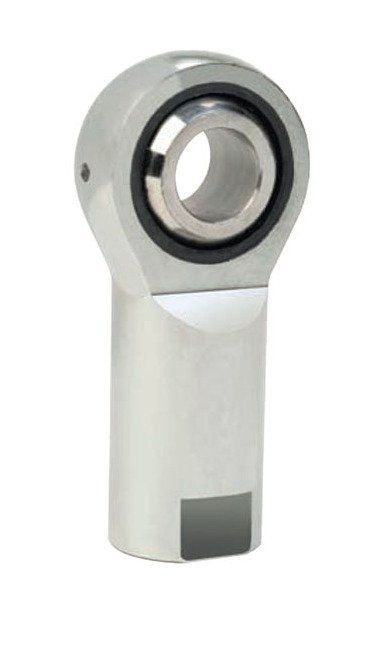

• Stainless Steel Molded Race Rod End for Mechanical Motion Transfer - Image 1
  • Stainless Steel Molded Race Rod End for Mechanical Motion Transfer - Image 2
  • Stainless Steel Molded Race Rod End for Mechanical Motion Transfer - Image 3
1 3
Lexco Cable Manufacturing →

Stainless Steel Molded Race Rod End for Mechanical Motion Transfer

Stainless Steel Molded Race Rod End for Mechanical Motion Transfer

PUS-fd466f

Stainless Steel Rod Ends for precise mechanical motion transfer in various applications. Self-lubricating, corrosion-resistant, and versatile. Meets SAE spec J1120.

$29.99
$29.99
Sale

Initiate Order

Stainless Steel Molded Race Rod End for Mechanical Motion Transfer

Stainless Steel Molded Race Rod End for Mechanical Motion Transfer

$29.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Molded Race Rod End for Mechanical Motion Transfer

Stainless Steel Molded Race Rod End for Mechanical Motion Transfer

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SSPM/SSPF Rod Ends are specially designed for mechanical motion transfer in diverse applications such as marine, construction equipment, recreational vehicles, and truck/off-highway vehicles. With a ball bore B of 0.6250" and self-lubricating molded race in stainless steel construction, these rod ends offer exceptional corrosion protection, low friction, and moisture resistance. Meeting SAE spec J1120, these rod ends provide excellent wear resistance, control over breakaway torque, and can operate in temperatures ranging from -30 °F to 220 °F (-34 °C to 104 °C). Customize assemblies based on your requirements for optimized performance.

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:MarineConstruction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway
Features 0
Stainless steel construction for extra corrosion protectionNylon molded race delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ºF - 220 ºF (-34 ºC - 104 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Stainless SteelBody - Stainless SteelRace - Molded Self-Lubricating Reinforced NylonStud (optional) - Stainless Steel
Specifications Additional Options
Studded Configuration
Specifications Ball Bore B 00020 00000
0.6250 "
Specifications Ball Diameter Ref
1.125 "
Specifications Ball Width W 0005
0.750 "
Specifications Centerline Length A 0015
2.500 "
Specifications Head Diameter D 0015
1.500 "
Specifications Housing Width H Ref
0.562 "
Specifications Note
This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: SSPF8S
Specifications Shank Diameter K 0015
1.000 "
Specifications Temperature Range
-30 to 220 ºF | -34 to 104 ºC
Specifications Thread Length C 0060
1.500 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
8300 lb
Specifications Unf 2
5/8-18 "
Specifications Weight
0.464 lb
Specifications Wrench Flat Length F 0030
0.500 "
Specifications Wrench Flat Width J 0015
0.875 "
Studded Dimensions L Ref
1.000 "
Studded Dimensions Min Thread Length S
1.000 "
Studded Dimensions P 0030
1.125 "
Studded Dimensions Rod End Bore Size
5/8 "
Studded Dimensions Thread Size N Unf 2a
5/8-18 "
CAGE
0T9L4
NAICS
332510
PSC
4030
