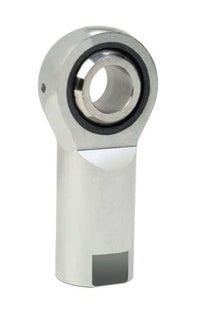

Stainless Steel Molded Race Self-Lubricating Rod End - Female

Stainless Steel Molded Race Self-Lubricating Rod End - Female

PUS-7c79d8

High-performance SSPM/SSPF Stainless Steel Rod Ends with self-lubricating race for versatile mechanical motion control.

$45.99
$45.99
Sale

Initiate Order

Stainless Steel Molded Race Self-Lubricating Rod End - Female

Stainless Steel Molded Race Self-Lubricating Rod End - Female

$45.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Molded Race Self-Lubricating Rod End - Female

Stainless Steel Molded Race Self-Lubricating Rod End - Female

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SSPM/SSPF Stainless Steel Rod Ends combine durability and performance with a molded self-lubricating reinforced nylon race, ideal for various mechanical motion transfer applications. These rod ends feature stainless steel construction for corrosion protection, low friction, moisture resistance, and good wear resistance. With a wide temperature range, customizable assemblies, and compliance with SAE spec J1120, these rod ends offer versatility and reliability for marine, construction, and recreational vehicle applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:MarineConstruction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway
Features 0
Stainless steel construction for extra corrosion protectionNylon molded race delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ºF - 220 ºF (-34 ºC - 104 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Stainless SteelBody - Stainless SteelRace - Molded Self-Lubricating Reinforced NylonStud (optional) - Stainless Steel
Specifications Additional Options
Studded Configuration
Specifications Ball Bore B 00020 00000
0.5000 "
Specifications Ball Diameter Ref
0.938 "
Specifications Ball Width W 0005
0.625 "
Specifications Centerline Length A 0015
2.125 "
Specifications Head Diameter D 0015
1.312 "
Specifications Housing Width H Ref
0.500 "
Specifications Note
This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: SSPF8S
Specifications Shank Diameter K 0015
0.875 "
Specifications Temperature Range
-30 to 220 ºF | -34 to 104 ºC
Specifications Thread Length C 0060
1.187 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
6430 lb
Specifications Unf 2
1/2-20 "
Specifications Weight
0.313 lb
Specifications Wrench Flat Length F 0030
0.375 "
Specifications Wrench Flat Width J 0015
0.750 "
Studded Dimensions L Ref
0.875 "
Studded Dimensions Min Thread Length S
1.000 "
Studded Dimensions P 0030
1.125 "
Studded Dimensions Rod End Bore Size
1/2 "
Studded Dimensions Thread Size N Unf 2a
1/2-20 "
CAGE
0T9L4
NAICS
332510
PSC
4030
