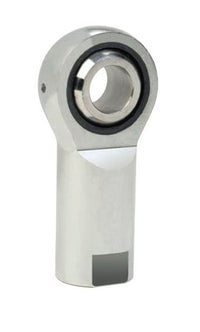

Stainless Steel Molded Race Self-Lubricating Rod End - LH SSPM/SSPF

Name: Stainless Steel Molded Race Self-Lubricating Rod End - LH SSPM/SSPF
Brand: Lexco Cable Manufacturing
SKU: PUS-2ec896
Price: 24.99 USD
Availability: OutOfStock

SKU:PUS-2ec896

Premium stainless steel rod ends for diverse mechanical applications - corrosion-resistant, low-friction, and versatile. Meets SAE spec J1120.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The LH SSPM/SSPF Rod Ends are meticulously crafted with stainless steel and molded self-lubricating reinforced nylon race, ensuring exceptional corrosion protection, low friction performance, and moisture resistance. With a design optimized for breakaway torque control, these rod ends are versatile for various mechanical motion transfer applications in marine, construction, recreational vehicles, and off-highway vehicles. Meeting SAE spec J1120, they offer excellent wear resistance, wide temperature range (-30 ÂºF - 220 ÂºF), and customizable assembly options to fit your precise requirements.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:MarineConstruction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway

Features 0

Stainless steel construction for extra corrosion protectionNylon molded race delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ÂºF - 220 ÂºF (-34 ÂºC - 104 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Stainless SteelBody - Stainless SteelRace - Molded Self-Lubricating Reinforced NylonStud (optional) - Stainless Steel

Specifications Additional Options

Studded Configuration

Specifications Ball Bore B 00020 00000

0.3750 "

Specifications Ball Diameter Ref

0.719 "

Specifications Ball Width W 0005

0.500 "

Specifications Centerline Length A 0015

1.625 "

Specifications Head Diameter D 0015

1.000 "

Specifications Housing Width H Ref

0.406 "

Specifications Note

This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: SSPF8S

Specifications Shank Diameter K 0015

0.687 "

Specifications Temperature Range

-30 to 220 ÂºF | -34 to 104 ÂºC

Specifications Thread Length C 0060

0.937 "

Specifications Type

Female

Specifications Ultimate Radial Static Load Capacity

4100 lb

Specifications Unf 2

3/8-24 "

Specifications Weight

0.146 lb

Specifications Wrench Flat Length F 0030

0.312 "

Specifications Wrench Flat Width J 0015

0.562 "

Studded Dimensions L Ref

0.625 "

Studded Dimensions Min Thread Length S

0.781 "

Studded Dimensions P 0030

0.875 "

Studded Dimensions Rod End Bore Size

3/8 "

Studded Dimensions Thread Size N Unf 2a

3/8-24 "
