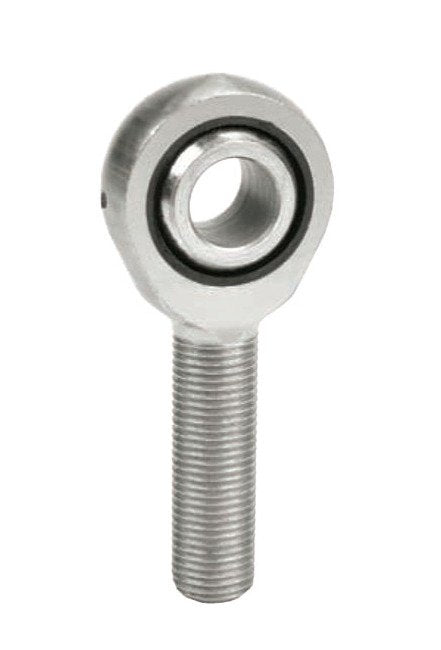

Stainless Steel Molded Self-Lubricating Rod End - Male, RH Series

Name: Stainless Steel Molded Self-Lubricating Rod End - Male, RH Series
Brand: Lexco Cable Manufacturing
SKU: PUS-764edd
Price: 26.99 USD
Availability: OutOfStock

SKU:PUS-764edd

Durable stainless steel rod ends with self-lubricating nylon race for versatile applications. Meets SAE spec J1120.

$26.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SSPM/SSPF Rod Ends from the RH Series feature durable stainless steel construction with a molded self-lubricating reinforced nylon race, ensuring low friction and moisture resistance. Designed to withstand a range of temperatures from -30 to 220 ÂºF (-34 to 104 ÂºC), these rod ends offer excellent wear resistance and versatile application use. With customized assembly options available, these rod ends are suitable for marine, construction, and recreational vehicle applications, meeting SAE spec J1120.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:MarineConstruction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway

Features 0

Stainless steel construction for extra corrosion protectionNylon molded race delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ÂºF - 220 ÂºF (-34 ÂºC - 104 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Stainless SteelBody - Stainless SteelRace - Molded Self-Lubricating Reinforced NylonStud (optional) - Stainless Steel

Specifications Additional Options

Studded Configuration

Specifications Ball Bore B 00020 00000

0.5000 "

Specifications Ball Diameter Ref

0.938 "

Specifications Ball Width W 0005

0.625 "

Specifications Centerline Length A 0015

2.437 "

Specifications Head Diameter D 0015

1.312 "

Specifications Housing Width H Ref

0.500 "

Specifications Note

This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: SSPF8S

Specifications Temperature Range

-30 to 220 ÂºF | -34 to 104 ÂºC

Specifications Thread Length C 0060

1.500 "

Specifications Type

Male

Specifications Ultimate Radial Static Load Capacity

6430 lb

Specifications Unf 2

1/2-20 "

Specifications Weight

0.232 lb

Studded Dimensions L Ref

0.875 "

Studded Dimensions Min Thread Length S

1.000 "

Studded Dimensions P 0030

1.125 "

Studded Dimensions Rod End Bore Size

1/2 "

Studded Dimensions Thread Size N Unf 2a

1/2-20 "

CAGE

0T9L4

NAICS

332510

PSC

4030
