Stainless Steel No Drip Wide Angle Atomizing Spray Nozzle - 1/4 NPT
Stainless Steel No Drip Wide Angle Atomizing Spray Nozzle - 1/4 NPT
SKU:NOD-d9ab74
Highly efficient stainless steel atomizing spray nozzle with no-drip design and wide angle round pattern for precise coating, cooling, and more.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Stainless Steel No Drip Wide Angle Atomizing Spray Nozzle - 1/4 NPT
$79.99
Quantity: 1
Claim Your Seller Account
Stainless Steel No Drip Wide Angle Atomizing Spray Nozzle - 1/4 NPT
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

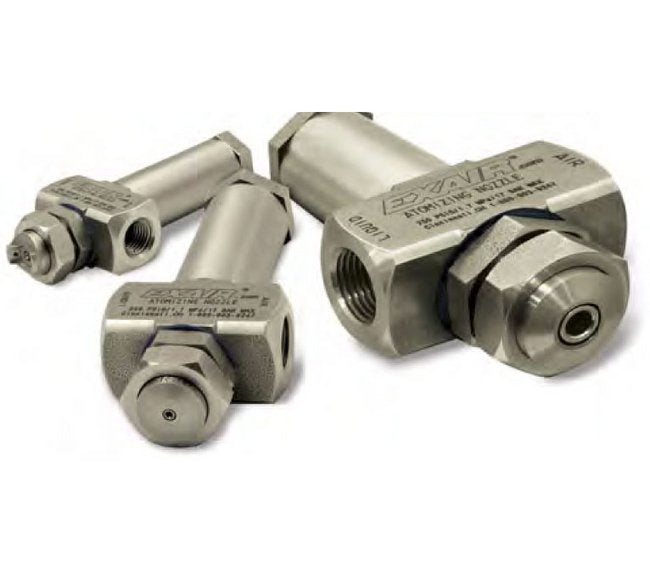

The AW2040SS - 1/4 NPT No Drip Internal Mix Wide Angle Round Pattern Atomizing Spray Nozzle sets the standard for precision spraying in diverse applications. Featuring a patented no drip design, this nozzle ensures liquid flow stops when air is off, reducing waste. Crafted from stainless steel for durability and corrosion resistance, it delivers a flow rate of 24.0 gal/h, perfect for coating, cooling, painting, and more. With fully adjustable settings and fine atomization, this nozzle is compact and easily integrates with EFC systems. Ideal for pressure-fed setups, it minimizes air and liquid consumption while offering interchangeability and a wide spray angle range.
Product Specifications
Specifications Additional Information
Internal Mix : Internal mix nozzles mix the liquid and water inside the air cap and produce the finest atomization. Internal mix nozzles can be used on liquids with a viscosity up to 300 cP. Both air and liquid sides are pressure fed. No Drip Internal Mix Atomizing Nozzles are for pressure fed applications not requiring independent air and liquid control.
Specifications Advantages
All Stainless Steel Construction | Compact | Easily used with an EFC | Fine Atomization | Fully Adjustable | Interchangeable Liquid and Air Caps | Minimizes Air and Liquid Consumption | No Post Spray Drip
Specifications Applications
Coating | Cooling | Dust Control | Humidification | Painting | Quenching | Rinsing | Wetting (Moistening)
Specifications Connection Type
1/4 National Pipe Thread (NPT)
Specifications Flow Rate
24.0 gal/h | 91 L/h
Specifications Maximum Spray Angle
90
Specifications Minimum Spray Angle
50
Specifications Mixing Type
No Drip Internal Mix
Specifications Spray Pattern
Wide Angle Round Pattern
