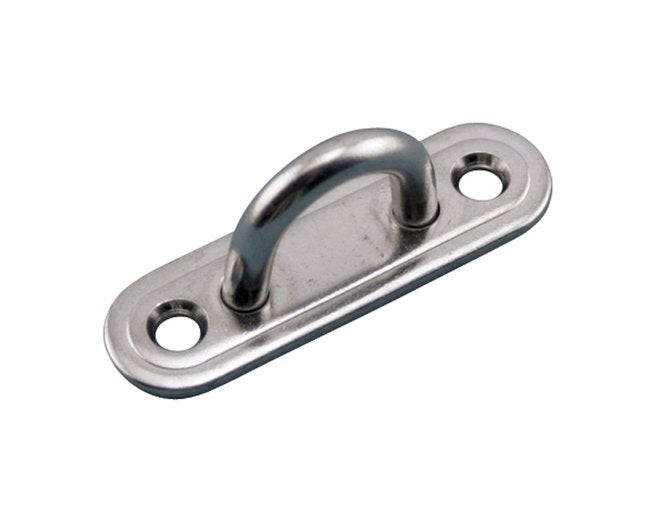

Stainless Steel Oblong Pad Eye - Suncor 3-1/4in
Stainless Steel Oblong Pad Eye - Suncor 3-1/4in
SKU:STA-f96b63
Durable Stainless Steel Oblong Pad Eye for marine, industrial, and government applications. Grade 304 stainless steel with 600 lb WLL.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Meet diverse application needs with the Suncor Stainless Steel Oblong Pad Eye in the 3-1/4in size. Crafted from grade 304 stainless steel for superior corrosion resistance, this pad eye offers a working load limit of 600 lb. Ideal for marine, industrial, architectural, OEM, and government usage, with optional backing plates available. Ensure durability and reliability in your installations with this stamped pad eye that adheres to industry standards.

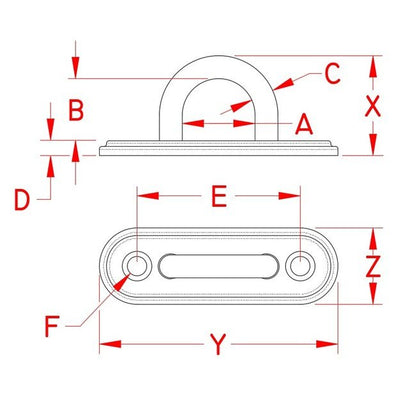

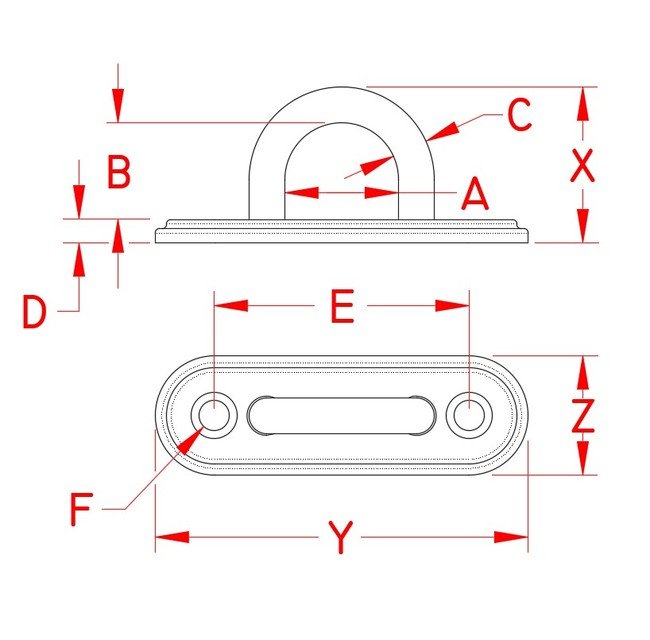

Product Specifications
Specifications Dimension A
0.90 in
Specifications Dimension B
0.84 in
Specifications Dimension C
0.31 in
Specifications Dimension D
0.19 in
Specifications Dimension E
2.20 in
Specifications Dimension F
0.21 in
Specifications Dimension X
1.32 in
Specifications Dimension Y
3.25 in
Specifications Dimension Z
1.01 in
Specifications Fabrication Type
Stamped
Specifications Fastener
#10
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Size
3-1/4 in
Specifications Weight
0.14 lb
Specifications Working Load Limit Wll
600 lb
CAGE
1CXX6
NAICS
332510
PSC
5340
