Stainless Steel One-Piece Split Clamp Shaft Mounting Collar

Name: Stainless Steel One-Piece Split Clamp Shaft Mounting Collar
Brand: Stafford Manufacturing Corp.
SKU: FLA-9d8c33
Price: 24.99 USD
Availability: OutOfStock

SKU:FLA-9d8c33

Securely mount shafts with precision Stainless Steel Collar; High clamping power with easy adjustment. RoHS2 and REACH compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

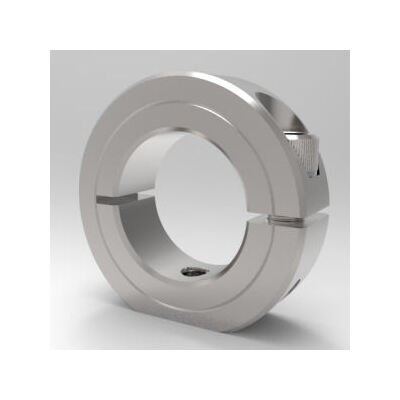

The Stainless Steel One-Piece Split Clamp Shaft Mounting Collar offers a secure solution to mount shafts effortlessly. Precision machined from 303 stainless steel, it provides high clamping power while protecting shafts from damage. This low-profile collar features a smooth bore and non-marring design, suitable for use on standard round shafts or thin wall tubes. Easy to adjust and versatile, this collar meets RoHS2 and REACH compliance standards.

Product Specifications

Dimensional Attributes Bore Size

1-1/2 in

Dimensional Attributes Bottom Threaded Hole

1/4-20

Dimensional Attributes Distance Across Flats

2.282 in

Dimensional Attributes Mounting Screw

#10 Flat Head Cap Screw

Dimensional Attributes Outside Diameter

2.375 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.563 in

Specifications Alloy

303

Specifications Approximate Weight

0.40 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

19S108MT

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786026645

Stainless Steel One-Piece Split Clamp Shaft Mounting Collar
