Stainless Steel One-Piece Split Clamp Shaft Mounting Collar
Stainless Steel One-Piece Split Clamp Shaft Mounting Collar
SKU:CLE-5c5e45
Precision-machined stainless steel shaft mounting collar for secure and adaptable shaft installation.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Stainless Steel One-Piece Split Clamp Shaft Mounting Collar
$12.99
Quantity: 1
Claim Your Seller Account
Stainless Steel One-Piece Split Clamp Shaft Mounting Collar
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel One-Piece Split Clamp Shaft Mounting Collar is a precision-machined solution for securely mounting shafts to surfaces or components. With a smooth bore to protect shafts from damage, this collar is adaptable for use on standard round shafts, tubes, or split hubs. Featuring a low profile design, high clamping power, and easy adjustability, this collar is ideal for various applications. RoHS2 and REACH compliant, this collar is available in steel and stainless steel, offering durability and reliability for your needs.
Product Specifications
Enhanced Performance 0
Latest filter media technology results in higher efficiencies and lower Delta PAdditional filter types for extra critical applications150 ºF maximum inlet temperature250 psig maximum working pressure(pressure vessels, 225 psig)Push-on element for quick, reliable replacementCoalescing filters have new structureOptimum filter efficiency even at low airflow of up to five percent of nominal flowFilter element seals to filter headStainless steel support sleeves, oil and acid resistant coated collars and end caps
Financing Approve Payments
Finance with Approve Payments
General Description 0
Superior Filtration for Increased ProductivityKaeser Gives You the Air Quality You RequireAmbient air contains contaminants that are drawn into the compressor. These contaminants are concentrated during compression and find their way into the compressed air system. A typical compressed air system is contaminated with abrasive solid particles such as dirt, rust and pipe scale, compressor lubricants, condensed water droplets, and oil and hydrocarbon vapors.Contaminated compressed air systems increase operating costs by robbing the air system of useful power. This results in reduced efficiency, damaged air operated equipment, higher maintenance and repair costs, reduced production caused by downtime, and increased product rejections.The properly sized and selected Kaeser filter(s) in conjunction with the appropriate dryer will remove these contaminants. This will allow the compressed air system to deliver the quality of air required for the particular application whether itâs plant air, instrument air, or breathing air.
High Performance Filters And Separators 0
Designed and developed using the latest innovations and manufacturing techniques, Kaeser filter housings are designed with larger flow areas to ensure low pressure drop and to provide easier installation, operation and maintenance. The result is consistent product quality while minimizing operating costs.
Kaeser Reduces The Cost Of Compressed Air 0
Kaeser filters remove more contaminants with less pressure drop. Compare the operating pressure drop of competitive brand filters and remember, for every extra 2 psi of pressure drop, power requirements increase by 1 %.With a complete selection of application-specific filter types, sizes, technical service and support, Kaeser offers a customized solution for all of your compressed air quality needs.
Modular Housings For Flows Up To 780 Scfm 0

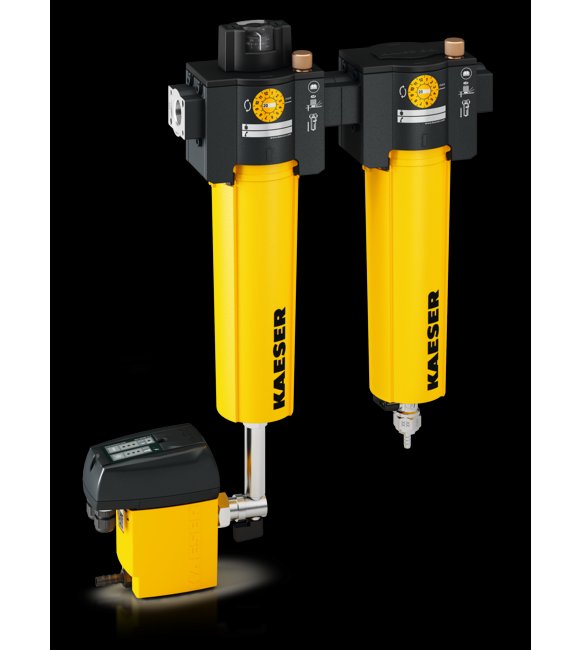

Manufactured from top quality aluminum and steelEpoxy powder coated (interior and exterior) for added durability and corrosion resistanceAll filter types fit same size housings1/8 turn bayonet head to bowl connections for easy access (20 to 170 scfm)Threaded connection for 250 scfm and upOptimized air flow through housing minimizes pressure dropThe tapered housing and non-turbulent lower filter zone prevents condensate from being picked up by the air flowAudible warning if disassembly attempted while housing under pressureWall mounting brackets available
Note 0
Maximum inlet temperature is 150 ºF.Specifications are subject to change without notice.
Premium Options 0
Filter MonitorMicroprocessor control and LCD displayIndicates optimum element replacement based on:- Operating time - Differential pressure- Filter typeFilter replacement "warning"Continuously measures differential pressureFilter Connection SetQuickly isolates condensate drain for easy maintenance without interrupting air supply.Eco-DrainNon-wearing electronic probe does not have moving partsReliably discharges condensate, but not costly compressed airSelf-checking electronics with automatic alarm test button, and voltage free alarm contactLEDs for power supply and alarm
Specifications Air Flow At 100 Psig
6875 cfm
Specifications Connection Size
8 Flange
Specifications Height
53.3 in
Specifications Liquid Removal
0 %
Specifications Maximum Inlet Temperature
150 ºF
Specifications Maximum Liquid Loading
0 ppm w/w
Specifications Maximum Working Pressure
232 psig
Specifications Model Type
Pressure Vessel
Specifications Pressure Drop Dry
.5 psi
Specifications Replacement Element Kit
9.9680.0 x 11
Specifications Replaces
KVF - 6875P
Specifications Solid Particle Removal
.5 µ
Specifications Standard Features Of Filters
Manual Condensate Drain
Specifications Vapor Carry Over
0.003 ppm w/w
Specifications Weight
593 lb
Specifications Width
31-1/2 in
Standard Features And Benefits 0
Delta P Slide IndicatorEnsures economical operation by changing color when filter element requires replacement. Fitted as standard on filters up to 60 scfm (excluding KVA).Color Coded ElementsAllows easy identification. Elements are designed using the latest media innovations and manufacturing technology.Internal Automatic DrainReliably discharges collected condensate (excluding KVA and KFS 250 and above).Delta P GaugeLarge, easy-to-read dual gauge faces allow housings to be mounted in any flow direction. Fitted as standard on filters from 100 scfm and up (except KVA).Modular ConnectionsSpace-saving design allows housings to be connected in series without additional piping.Liquid Level IndicatorVisually monitor liquid level and verify drain operation.
