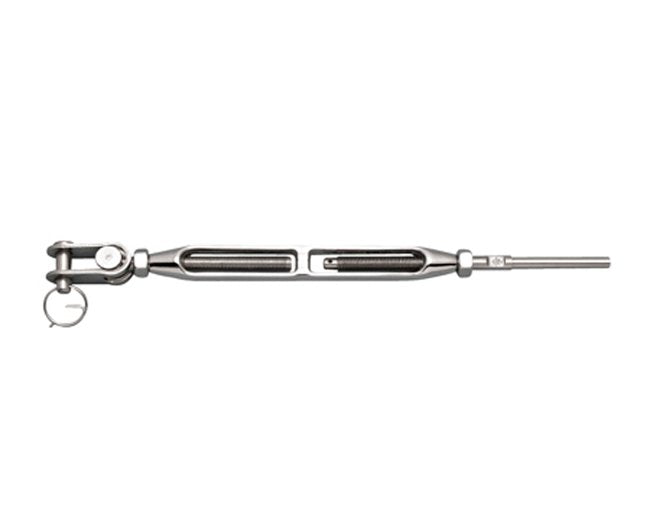

Stainless Steel Open Body Toggle and Hand Swage Stud Turnbuckle
Stainless Steel Open Body Toggle and Hand Swage Stud Turnbuckle
SKU:STA-006dae
Durable Stainless Steel Turnbuckle for Marine, Industrial & Architectural Use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Stainless Steel Open Body Toggle and Hand Swage Stud Turnbuckle is a versatile solution for cable tensioning in marine, industrial, and architectural settings. This turnbuckle, with dimensions A-D of 3/16 in, 2.01 in, 0.38 in, and 0.24 in respectively, offers durability with a chrome bronze body and stainless steel ends. Precision crafted through drop forging and machining, it ensures reliability in challenging environments. Suitable for cable sizes 1/8" and 3/16", it meets stringent industry standards.

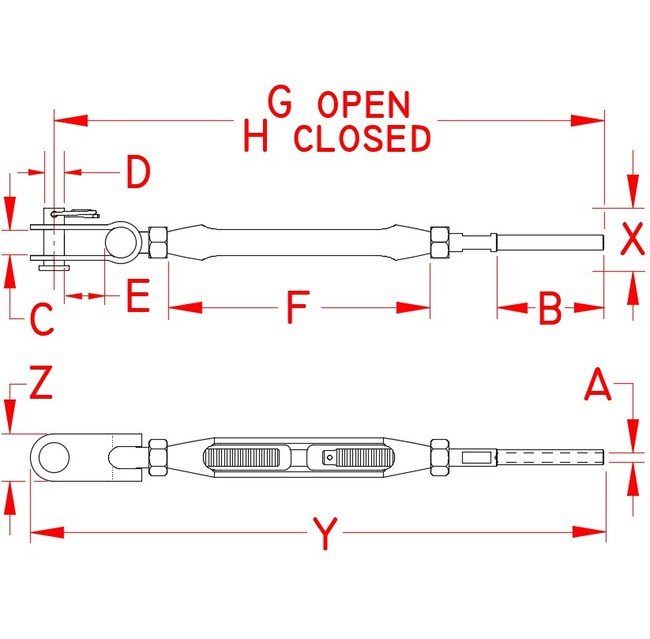

Product Specifications
Specifications Dimension A
3/16 in
Specifications Dimension B
2.01 in
Specifications Dimension C
0.38 in
Specifications Dimension D
0.24 in
Specifications Dimension E
0.45 in
Specifications Dimension F
4.61 in
Specifications Dimension H
9.00 in
Specifications Dimension X
0.82 in
Specifications Dimension Y
9.26 in
Specifications Dimension Z
0.59 in
Specifications Fabrication Type
Drop Forged | Precision Machined | Stamped
Specifications Made In
Import
Specifications Material
Chrome Bronze Body and Stainless Ends
Specifications Weight
0.28 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
