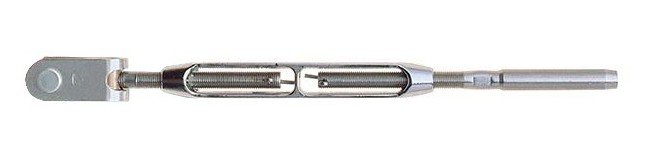

Stainless Steel Open Body Turnbuckles - Jaw & Machine Swage 5/16"

Name: Stainless Steel Open Body Turnbuckles - Jaw & Machine Swage 5/16"
Brand: Lexco Cable Manufacturing
SKU: WIR-1c8cbc
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-1c8cbc

High-quality Stainless Steel Turnbuckles for 5/16" wire ropes with superior strength and durability. Designed for secure crimping, ideal for marine rigging.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Stainless Steel Open Body Turnbuckles with Jaw & Machine Swage are expertly crafted for durability and reliability in high-load conditions. Constructed with 316 ends and bronze bodies, featuring a 'T' Toggle Construction on the jaw for secure grip. The bronze toggle nuts prevent galling, ensuring superior performance. These turnbuckles are designed for 5/16" wire ropes, with an impressive Breaking Strength of 14,800 lbs and a Working Load Limit of 4,200 lbs. With precise specifications including a 5/8-18 thread size, 5" adjustment capability, and a 7-3/4" body length, these turnbuckles meet the stringent requirements of marine rigging and industrial applications.

Product Specifications

Specifications Adjustment

Specifications Approximate Breaking Strength

14800 lbs

Specifications Body Length

7-3/4

Specifications Pin Diameter

5/8"

Specifications Thread Size

5/8-18

Specifications Type

Jaw/Swage

Specifications Weight

3 lbs

Specifications Wire Rope Dia

5/16"

Specifications Wll

4,200 lbs

CAGE

0T9L4

NAICS

332510

PSC

4030
