Stainless Steel Orifice Connector - RB82087 Series

Name: Stainless Steel Orifice Connector - RB82087 Series
Brand: Bird Precision
SKU: ORI-502cb3
Price: 29.99 USD
Availability: OutOfStock

SKU:ORI-502cb3

Precision-engineered Stainless Steel Orifice Connector for reliable face seal connections in stainless tubing applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

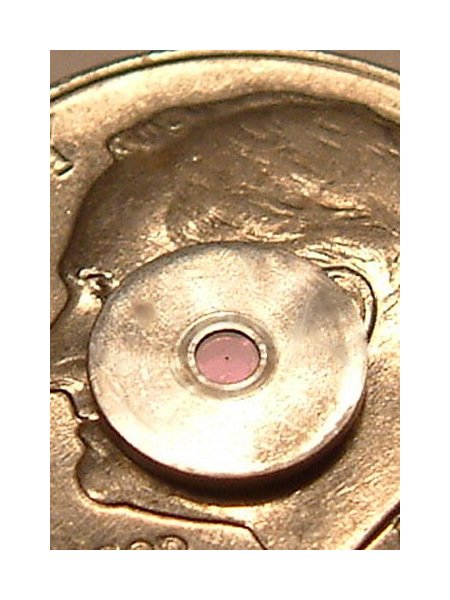

The RB82087 Series Stainless Steel Gland/Gasket Connector Orifice is designed for clean face seal connections in stainless tube applications. With a 0.0168" Inner Diameter and 0.260" Outer Diameter, this orifice ensures a reliable seal at varying pressures. Laser-drilled and wire-lapped for precision, it offers low flow, accuracy, and repeatability, making it ideal for applications requiring stringent standards.

Product Specifications

Additional Information Additional Information

For 1/8 VCR, stainless tube applications the standard material is stainless.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.

Specifications Diameter

0.260 in

Specifications Material

Stainless Steel

Specifications Orifice Inner Diameter Id

0.0168 in

Specifications Orifice Outer Diameter Od

0.060 in

Specifications Orifice Style

Sharp Edge Ruby Straight-Hole

Specifications Product Style

Gland/Gasket

Specifications Product Type

Orifice Connectors Fittings

Specifications Series

RB82087

Specifications Suggested Pressures

0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)

Specifications Vacuum Coupling Radiation Vcr Size

1/8
