Stainless Steel Oval Grip Pull Handles - Metric Threaded
Stainless Steel Oval Grip Pull Handles - Metric Threaded
SKU:IND-97cefe
Enhance your industrial equipment with durable Stainless Steel Oval Grip Pull Handles with metric threading. Quick delivery and top quality assured.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Oval Grip Pull Handles - Metric Threaded
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Oval Grip Pull Handles - Metric Threaded
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial equipment with high-quality Oval Grip Pull Handles made from durable stainless steel. Our ISO 9001:2015 certified products feature precise metric measurements, including a 25.00 mm grip diameter, 140.00 mm center to center distance, and a 57.00 mm height. With quick turnaround on custom orders and a wide inventory for immediate delivery, Monroe ensures top-notch quality, service, and selection. Benefit from our state-of-the-art manufacturing process and experience fast shipping on these plastic threaded pull handles.

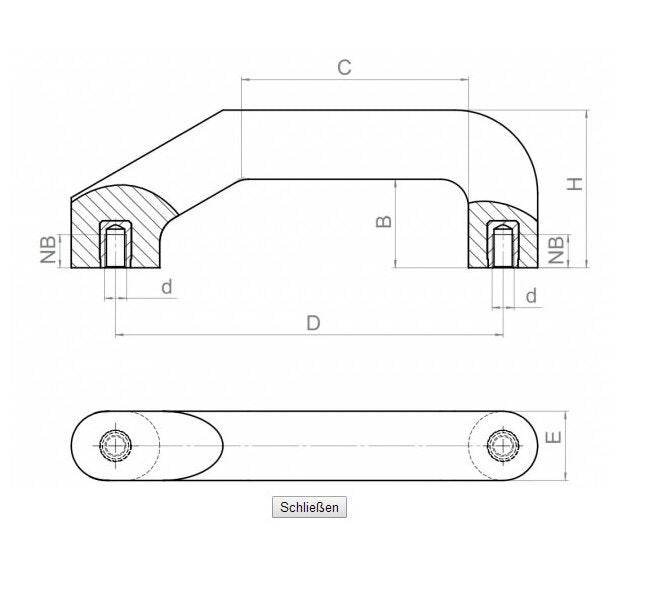

Product Specifications
Specifications Alternate Pn
72307
Specifications A Diameter
25.00 mm
Specifications B Center To Center
140.00 mm
Specifications Country Of Origin
-
Specifications C Height
57.00 mm
Specifications D Screw Size
M8 x 1.25
Specifications E Thread Depth
14.00 mm
Specifications Grip
Oval Grip
Specifications G Overall Width
170 mm
Specifications H Inside Width
82.00 mm
Specifications I Thickness
22.00 mm
Specifications K Screw Height
17.00 mm
Specifications Material
Plastic
Specifications Note
We are currently in the process of updating our CAD files, please use these for reference only. Speak to one of our sales representatives about purchasing a sample.
Specifications Product Guides
Pull Handle's Guides
Specifications P Inside Height
32.00 mm
Specifications Q Center Line
35.00 mm
Specifications R1 Radius
8.00 mm
Specifications R Radius
25.00 mm
Specifications S2 Radius
12.00 mm
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
