Stainless Steel Overlap Wave Washer
Stainless Steel Overlap Wave Washer
SKU:SPR-f3d294
High-quality Stainless Steel Overlap Wave Washer for fastening and clutch applications. Corrosion-resistant with space-saving design.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Stainless Steel Overlap Wave Washer
$14.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Overlap Wave Washer
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

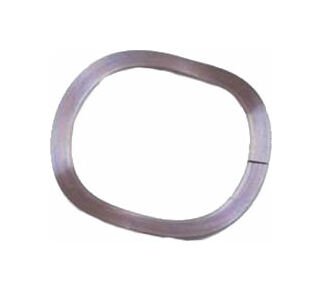

The Stainless Steel Overlap Wave Washer is a vital component for fastening, pushbutton, and slip clutch applications. Crafted from high-quality 17-7 PH stainless steel, this wave washer boasts exceptional corrosion resistance and durability. With a unique design that allows for up to 50% reduction in spring height, it easily fits into tight axial and radial spaces while preventing galling of bore surfaces. Trust in this innovative product to deliver reliable performance in demanding environments.
Product Specifications
Specifications Application Uses
Fastening, Pushbutton, Slip Clutch, etc.
Specifications Country Of Origin
-
Specifications Depth
0.150 Inch
Specifications Featuresadvantagesbenefits
Enables the spring height to be reduced by as much as 50%, fits in tighter axial and radial locations, slides across itself allowing compression with no galling of the bore in which it is installed/ Corrosion resistance
Specifications Free Height Approx In
0.150 Inch
Specifications Height
1.250 Inch
Specifications Loaded Height In
0.078 Inch
Specifications Material
Stainless Steel, 17-7 PH, C/CH-900, AMS-5529 or SUS631
Specifications Maximum Od In
1.250 Inch
Specifications Minimum Id In
0.960 Inch
Specifications Of Waves
3
Specifications Thickness In
0.016 Inch
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.002774 Pound
Specifications Width
0.150 Inch
