Stainless Steel Plain Eye Bolt - Grade 316-NM UNC Thread
Stainless Steel Plain Eye Bolt - Grade 316-NM UNC Thread
SKU:STA-2e0d42
Grade 316-NM Stainless Steel Eye Bolt for marine and industrial use. 1200 lb WLL, ASME B30.26 certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Plain Eye Bolt - Grade 316-NM UNC Thread
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Plain Eye Bolt - Grade 316-NM UNC Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

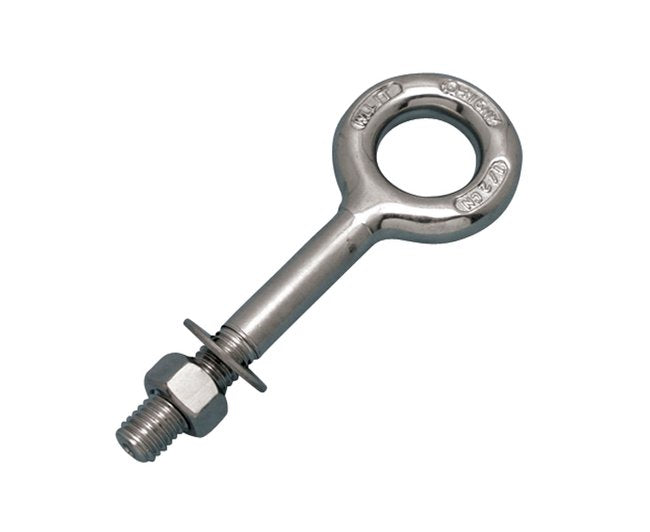

The Stainless Steel Plain Eye Bolt, crafted from grade 316-NM stainless steel, is a versatile and durable fastening solution designed for marine and industrial applications. This eye bolt comes complete with a nut and washer, ensuring secure installation. With a working load limit of 1200 lb, precision machining, and ASME B30.26 certification, it meets stringent quality and safety standards, making it an ideal choice for various projects.

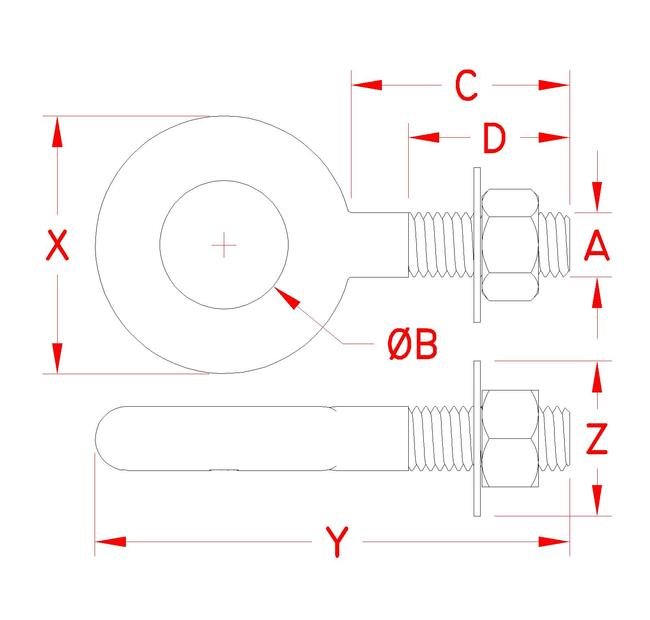

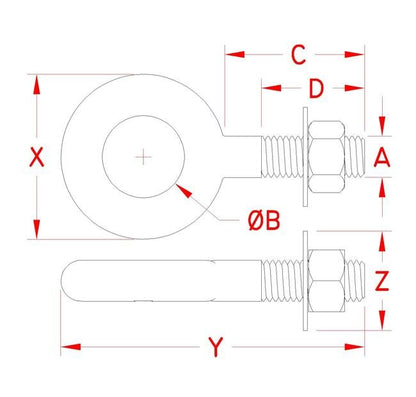

Product Specifications
Specifications Dimension A
3/8 in
Specifications Dimension B
0.75 in
Specifications Dimension C
0.75 in
Specifications Dimension D
0.75 in
Specifications Dimension X
1.50 in
Specifications Dimension Y
2.35 in
Specifications Dimension Z
0.76 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.148 lb
Specifications Working Load Limit Wll
1200 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
