Stainless Steel Plain Eye Bolt UNC Thread - Grade 316-NM
Stainless Steel Plain Eye Bolt UNC Thread - Grade 316-NM
SKU:STA-7ad580
Grade 316-NM Stainless Steel Plain Eye Bolt with UNC Thread for marine and industrial applications. Compliant with ASME B30.26.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

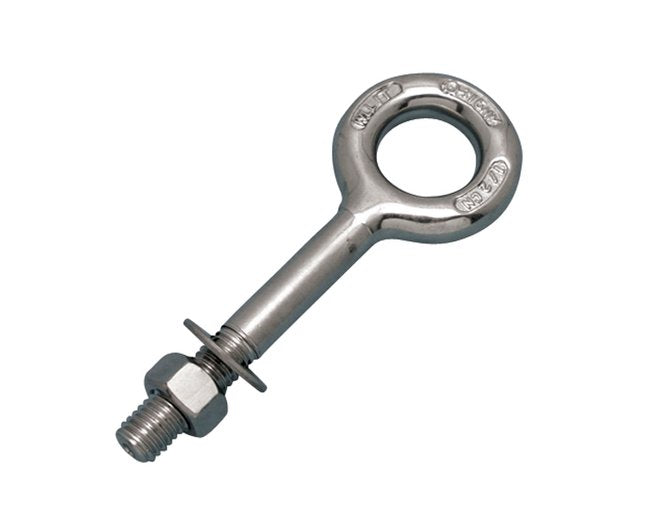

Upgrade your projects with the Stainless Steel Plain Eye Bolt featuring UNC thread, made from grade 316-NM stainless steel for exceptional corrosion resistance. This eye bolt is ideal for marine and industrial applications, offering durability and reliability. With a comprehensive range of sizes from 1/4" to 1", this bolt includes one nut and one washer. Built with precision drop forging, it meets ASME B30.26 specifications, ensuring safety and performance.

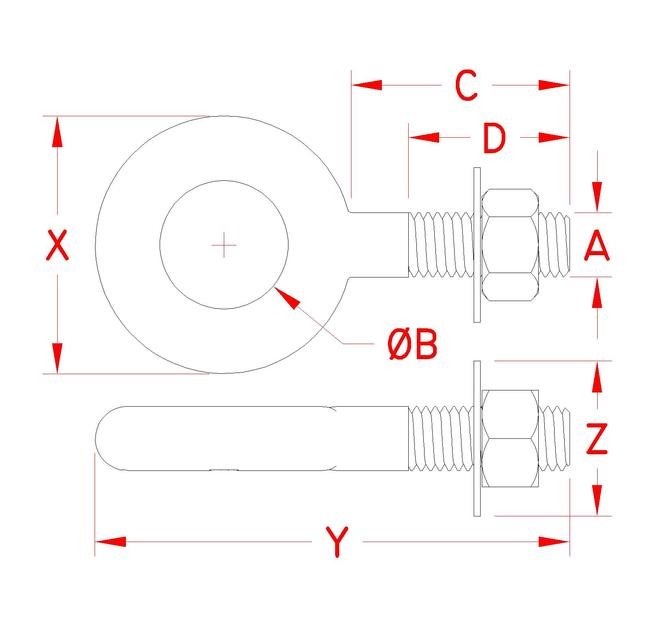

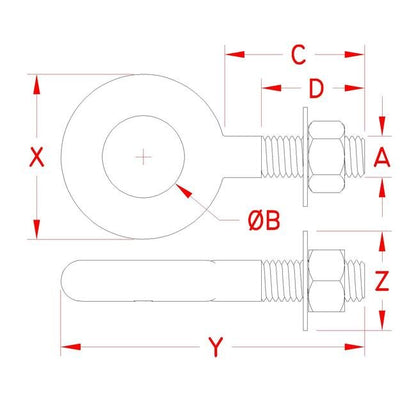

Product Specifications
Specifications Dimension A
5/16 in
Specifications Dimension B
0.63 in
Specifications Dimension C
2.25 in
Specifications Dimension D
1.50 in
Specifications Dimension X
1.18 in
Specifications Dimension Y
3.50 in
Specifications Dimension Z
0.61 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.096 lb
Specifications Working Load Limit Wll
800 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
