Stainless Steel PN 16 Swing Check Valve, Wafer Style Short
Stainless Steel PN 16 Swing Check Valve, Wafer Style Short
SKU:VAL-4976ab
Durable Stainless Steel PN 16 Swing Check Valve for reliable performance and compliance with DIN2501-PN16 standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Stainless Steel PN 16 Swing Check Valve, Wafer Style Short
$299.99
Quantity: 1
Claim Your Seller Account
Stainless Steel PN 16 Swing Check Valve, Wafer Style Short
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

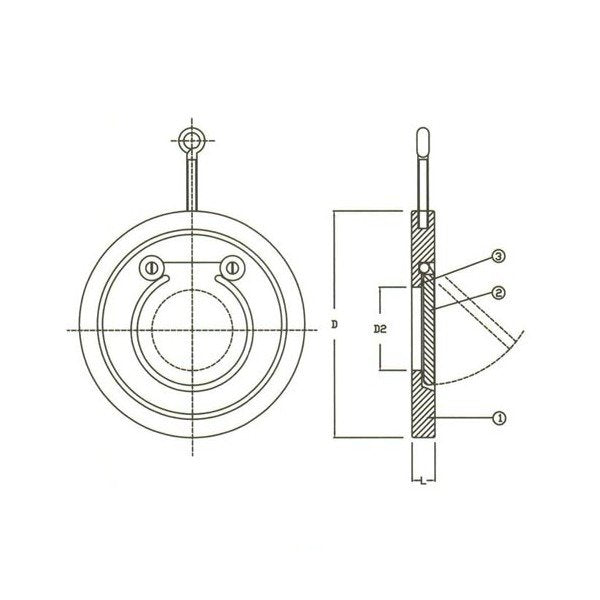

The Stainless Steel PN 16 Swing Check Valve offers high durability and corrosion resistance with a Stainless Steel AISI 316L body and disc options in Gunmetal DIN 1705 or Stainless Steel AISI 316L. Featuring NBR, EPDM, Viton, or Teflon seat options, this valve ensures reliable performance. Compliant with DIN2501-PN16 standards, it is designed for superior hydraulic inspection and measures L: 29.0 mm, D: 330 mm, D2: 190 mm, weighing 15.0 kg.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Stainless Steel
Specifications D
330 mm
Specifications D2
190 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications L
29.0 mm
Specifications Seat Material
Synthetic Material
Specifications Size
250
Specifications Stem Material
Brass
Specifications Weight
15.0 kg
