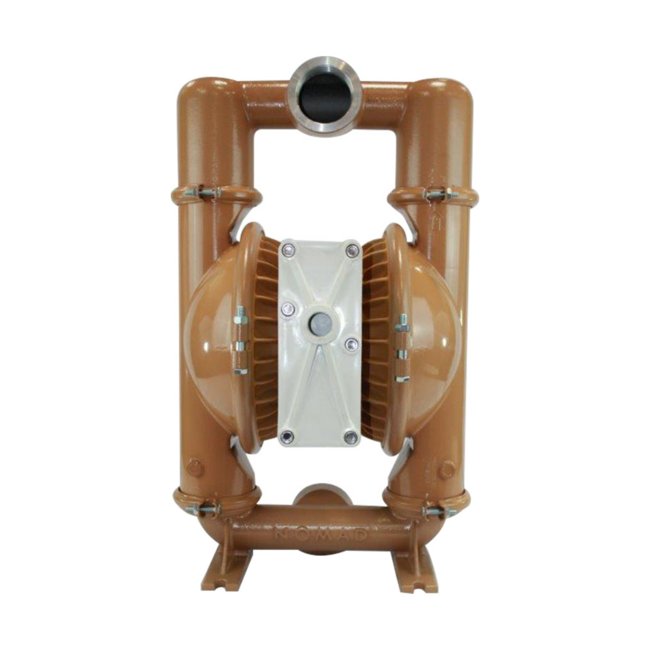

Stainless Steel PWR-FLO™ Diaphragm Pump - 3" BSP, NPF80/SAAP/VTU/VT/VT/B/C
Stainless Steel PWR-FLO™ Diaphragm Pump - 3" BSP, NPF80/SAAP/VTU/VT/VT/B/C
SKU:MAN-33eee1
Efficient Stainless Steel PWR-FLO™ ADD Pump with Viton/FKM diaphragm, a reliable replacement for Wilden® AODD pumps. Perfect for large solids and slurries.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Stainless Steel PWR-FLO™ Diaphragm Pump - 3" BSP, NPF80/SAAP/VTU/VT/VT/B/C
$1,899.99
Quantity: 1
Claim Your Seller Account
Stainless Steel PWR-FLO™ Diaphragm Pump - 3" BSP, NPF80/SAAP/VTU/VT/VT/B/C
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel PWR-FLO™ ADD Pump is a versatile solution designed as a direct replacement for Wilden® AODD pumps. Featuring a Viton/FKM diaphragm and stainless steel construction, this pump excels in handling large solids, slurries, and various chemicals. With a max flow rate of 243 gpm, it ensures efficient liquid transfer for filling and batching applications. Its anti-stalling design guarantees reliability, and the asymmetrical spool design enhances air system efficiency. Ideal for both consumer and institutional needs, this pump meets stringent industry standards for durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Viton
Specifications Customs Code
HTS Code 8413.50.00.50Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Viton/FKM
Specifications Displacement Per Cycle
1.48 gal | 5.60 lit
Specifications Fluid Inlet Size
3 BSP in | 76 BSP mm
Specifications Fluid Outlet Size
3 BSP in | 76 BSP mm
Specifications Height
32 Inch | 32 in | 822.96 mm
Specifications Length
32 Inch | 32 in | 0.8230 m | 822.96 mm
Specifications Max Flow Rate
243 gpm | 919.86 lpm
Specifications Moc
Stainless Steel
Specifications Model
NPF80/SAAP/VTU/VT/VT/B/C
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Similar or Comparable To Wilden®
Specifications Solids Handling
0.375 in | 10 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
21 Inch | 21 in | 0.5232 m | 523.24 mm
