The Stainless Steel Pwr-Flo⢠AODD Pump with Hytrel® UFI Diaphragm is a robust solution designed to meet the demands of industrial applications. Featuring a drop-in replacement for Wilden® AODD pumps, this pump is capable of handling large solids and slurries with ease. The PWR-FLO⢠asymmetrical spool design ensures an efficient air system, providing reliability in on/off liquid transfer operations. With a stainless steel wetted M.O.C. and chemically resistant polypropylene components, this pump offers durability and optimal performance in diverse fluid handling tasks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

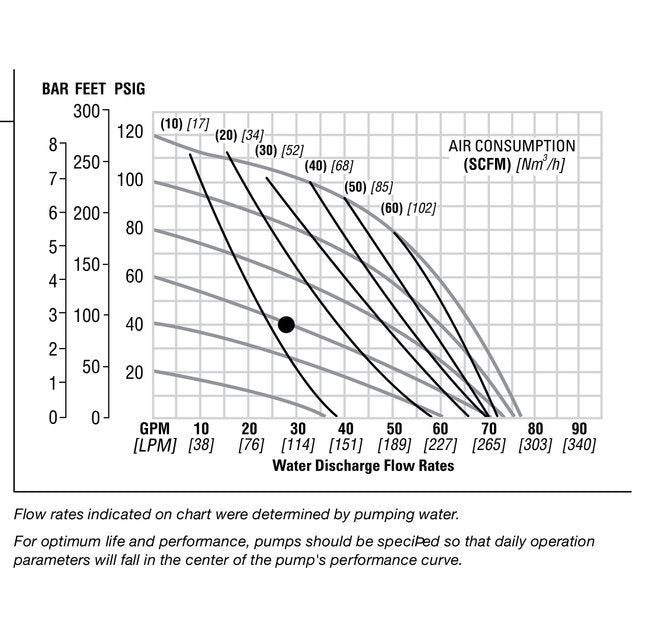

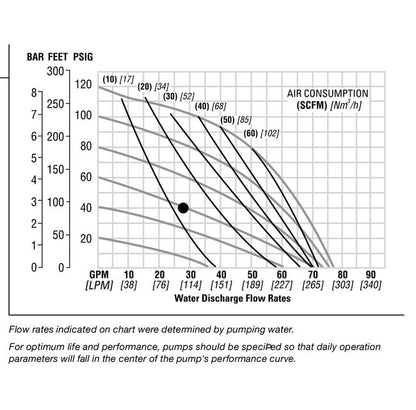

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Hytrel®
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Hytrel® UFI
Specifications Displacement Per Cycle
0.26 gal | 0.98 lit
Specifications Elastomers
Hytrel®, PTFE
Specifications Fluid Inlet Size
1.5 in | 38 mm
Specifications Fluid Outlet Size
1.25 Tri-Clamp in | 32 Tri-Clamp mm
Specifications Height
17 Inch | 17 in | 429.26 mm
Specifications Length
12 Inch | 12 in | 0.3073 m | 307.34 mm
Specifications Max Flow Rate
76 gpm | 287.69 lpm
Specifications Model
NPF40/SAAA/FGF/TF/FG/TC/C/X
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-29485
Specifications Solids Handling
0.1875 in | 5 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
17 Inch | 17 in | 0.4293 m | 429.26 mm
