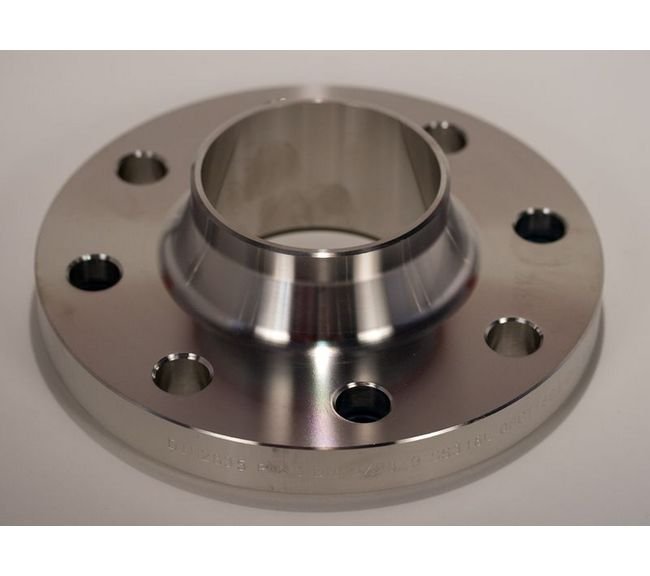

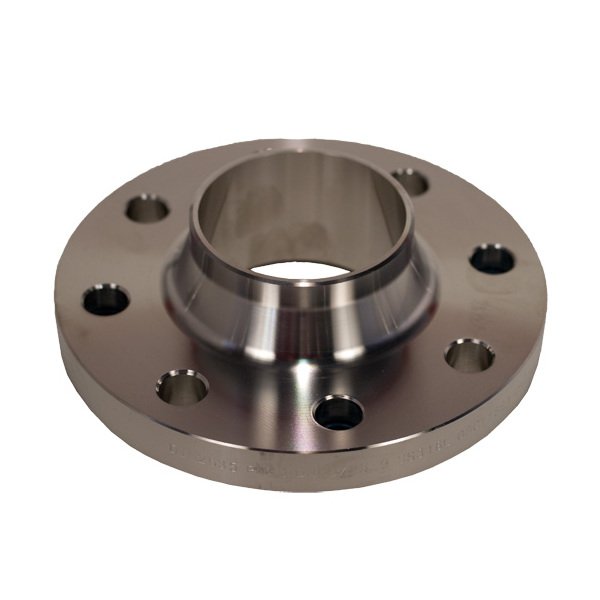

Stainless Steel Raised Face Weld Neck Flange DIN PN40 - 3"

Name: Stainless Steel Raised Face Weld Neck Flange DIN PN40 - 3"
Brand: World Wide Metric, Inc.
SKU: FLA-2d9f1d
Price: 89.99 USD
Availability: OutOfStock

SKU:FLA-2d9f1d

Durable Stainless Steel Raised Face Weld Neck Flange DIN PN40 for high-pressure applications. Size: 3", Pressure: PN40.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

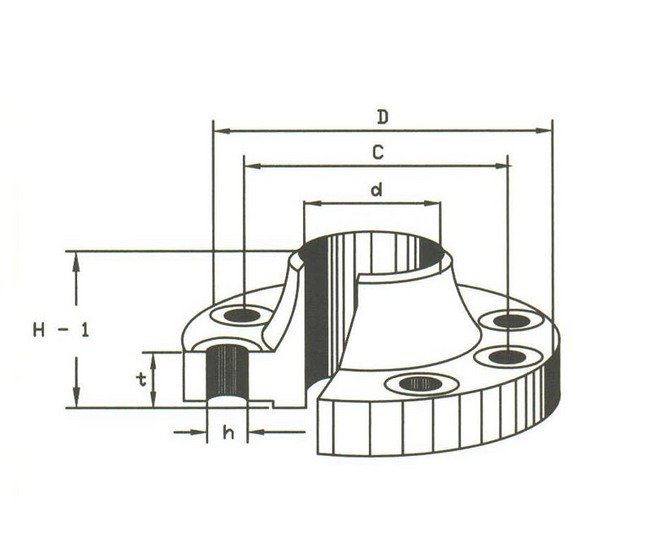

The Stainless Steel Raised Face Weld Neck Flange DIN PN40 is designed for high-pressure applications, featuring a size of 3 inches and a pressure rating of PN 40. With precise dimensions of d: 88.9 mm, D: 200 mm, C: 160 mm, and 8 bolts for secure connections, this flange ensures durability and reliability in industrial settings. Weighing 4.75 kg, it offers a robust solution for pipeline connections that demand superior performance and corrosion resistance.

Product Specifications

Specifications C

160 mm

Specifications D

200 mm

Specifications H

18 mm

Specifications H1

58 mm

Specifications Number Of Bolts

Specifications Pressure

PN 40

Specifications Size

080 - 3"

Specifications T

24 mm

Specifications Weight

4.75 kg
