Precision-engineered Stainless Steel Gland/Gasket Orifice for high-pressure stainless tube applications, featuring Sharp Edge Ruby Straight-Hole design.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

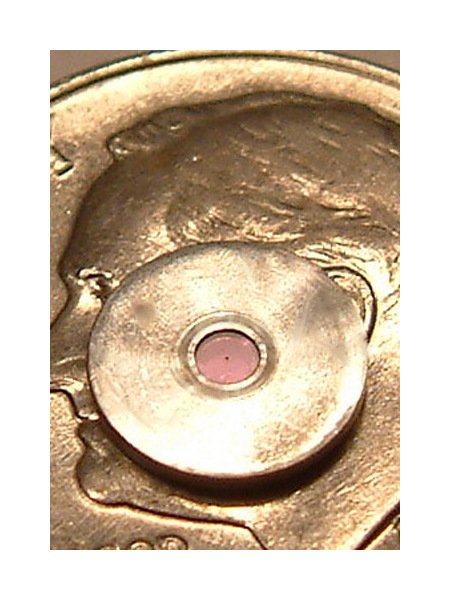

The Stainless Steel RB82087 Series Gland/Gasket Connector Orifice is designed to provide a secure face seal connection for stainless tube applications. With a precise 0.0008-inch Inner Diameter (I.D.) and a 0.260-inch Outer Diameter (O.D.), this orifice features a Sharp Edge Ruby Straight-Hole style that ensures low flow, accuracy, and repeatability. Laser drilled and wire lapped for roundness and sharp edges, this orifice series meets high-pressure requirements of above 5000 psi, making it ideal for applications demanding reliability and performance.

Product Specifications

Additional Information Additional Information

For 1/8 VCR, stainless tube applications the standard material is stainless.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.

Specifications Diameter

0.260 in

Specifications Material

Stainless Steel

Specifications Orifice Inner Diameter Id

0.0008 in

Specifications Orifice Outer Diameter Od

0.060 in

Specifications Orifice Style

Sharp Edge Ruby Straight-Hole

Specifications Product Style

Gland/Gasket

Specifications Product Type

Orifice Connectors Fittings

Specifications Series

RB82087

Specifications Suggested Pressures

0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)

Specifications Vacuum Coupling Radiation Vcr Size

1/8
