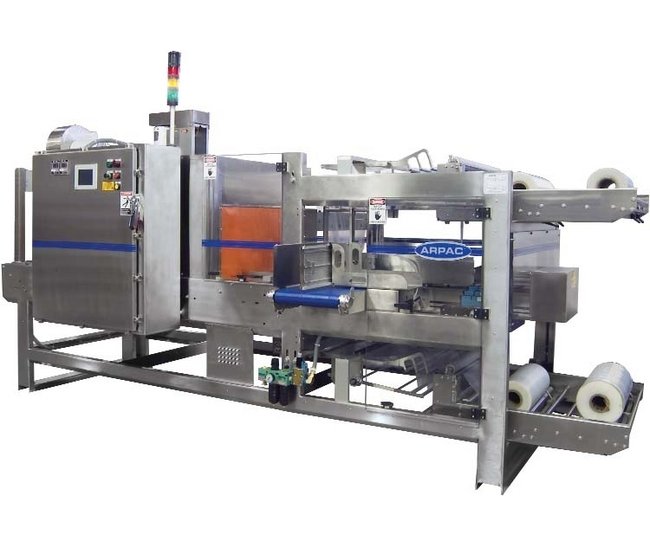

The Stainless Steel Right-Angle Shrink Bundler is a compact model 108F system designed for dairy and food processing environments. It collates and over-wraps various food containers with precision and efficiency. Built for washdown environments, this bundling system features a stainless steel frame, slanted channels with drainage points, and NEMA 4X electrical cabinets for durability and compliance. With specifications including output speed up to 30 packages per minute and film type Low Density Polyethylene, it ensures optimal packaging for aseptic products, cans, plastic bottles, and more. Designed for around-the-clock operation, it offers features like power-driven pinch rollers, Allen-Bradley® PLC, and a heavily insulated shrink tunnel for cold environments.
Product Specifications
Additional Information Additional Information
For optimum wrapping speed, the 108F is equipped with a pneumatic main ram, step back product stop and an on-demand powered film feed system. A heavily-insulated shrink tunnel provides efficient operation in cold environments. The 108F can be built with an optional cooling section that quickly sets the film. Other features include: double driven film cradles for quick film roll changeovers and central point lubrication for simple preventative maintenance.
Electrical Power Requirements Alternating Current Ac Voltage
460 V
Electrical Power Requirements Current
39 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
3
Features Features

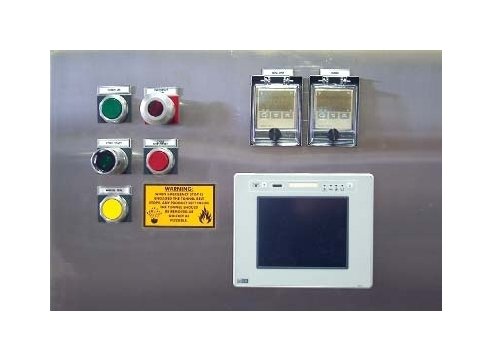

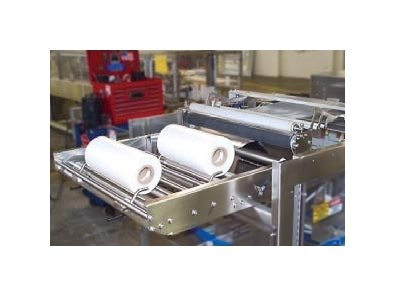

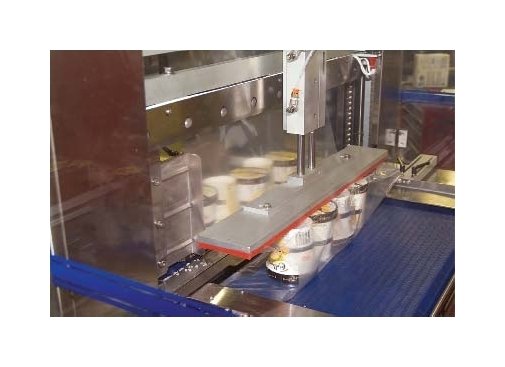

Compact single frame construction designed for around-the-clock operationStainless steel frame, slanted channels and drainage points for washdown environments8" clearance from floor to framePower-driven upper and lower pinch and cradle rollers controlled by low inertia film dancers with fast, straight-through quick threading featureTop and bottom film cradles accommodate four 14" diameter rolls of film"Step back" product stop relieves back pressure prior to 90 degree transferEasy access pullout heater elementsEasy to service air cylindersAir control system with filter regulator, lubricator and plug-in pneumatic valvesCentral point lubrication (nylon lines) simplifies preventative maintenancePop-up guide keeps round products properly alignedAllen-Bradley® programmable logic controllerARPAC's operator interface with color touchscreen, message display and self-diagnosticsNEMA 4X electrical controls and cabinetsLow film alert warns that a film changeover will soon be necessaryPowered seal conveyor for greater outputSelf-tracking conveyor belts for easy cleaningQuick-change seal bar with military-type quick disconnect and replaceable plasma coated insertsProduct hold down for light productsTransfer bridge plate for smooth product transition through seal gapChoice of cradle or spindle film rackRight or left hand mounted infeed and controlsOperator manuals with maintenance, safety and operating proceduresLevelers for uneven floorsHeavily insulated shrink tunnel for cold environments
Options Options
Casters for machine portabilityCooling section at tunnel exit for immediate product handlingServo driven ram for custom applicationsCentral lubrication with copper or stainless steel tubingSpare Parts KitCustom solutions to suit your specific application
Specifications Applications
Aseptic Products | Boxes | Cans | Ice-Cream Containers - Carton | Ice-Cream Containers - Pint | Ice-Cream Containers - Quart | Ice-Cream Containers - Round | Ice-Cream Containers - Scround | Ice-Cream Containers - Square | Plastic Bottles | Trays
Specifications Cabinet Standards
NEMA 4X
Specifications Compressed Air Requirements
80 psi | 22 scfm
Specifications Film Gauge
1 to 2 mil
Specifications Film Roll Diameter
0 to 14 in
Specifications Film Roll Width
0 to 30 in
Specifications Film Type
Low Density Polyethylene (L.D.P.E.)
Specifications Frame Material
Stainless Steel
Specifications Height
0 to 10 in
Specifications Length Flow Direction
0 to 13 in
Specifications Output Speed
Up to 30 packages per minute, depending on product
Specifications Width Across Machine
0 to 30 in
