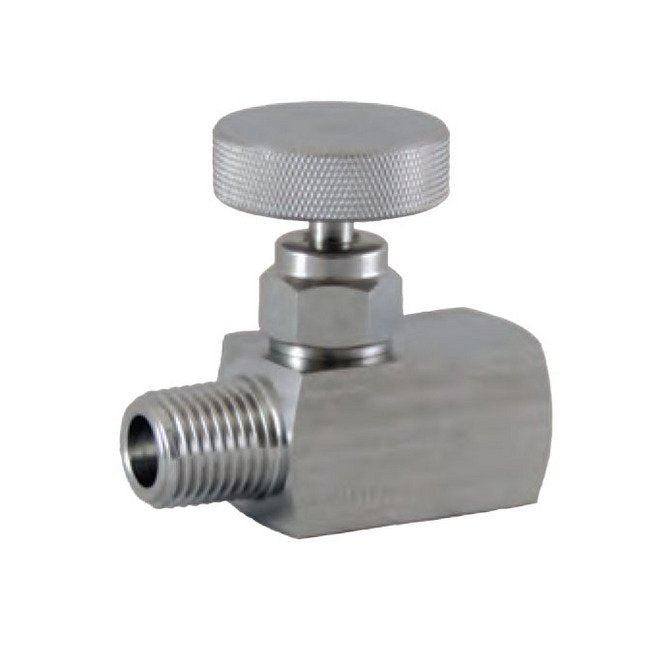

Stainless Steel Round-Handle Mini Needle Valve, Male x Female 1/4 x 1/4 in
Stainless Steel Round-Handle Mini Needle Valve, Male x Female 1/4 x 1/4 in
SKU:MIN-832927
High-pressure stainless steel mini needle valve for precise control in demanding environments. Ideal for institutional use.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Stainless Steel Round-Handle Mini Needle Valve, Male x Female 1/4 x 1/4 in
$42.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Round-Handle Mini Needle Valve, Male x Female 1/4 x 1/4 in
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Round-Handle Mini Needle Valve features a durable construction with 316 Stainless Steel body, stem, and bonnet, ensuring reliable performance. With a maximum Pressure Rating of 6000 psi, this valve is designed for precision control in demanding environments. The PTFE stem packing with Fluorocarbon (FKM) O-Ring and POM/Acetal Soft Seat provide leak-free operation. Perfect for industrial applications, this valve excels in accuracy and durability, making it a dependable choice for institutional procurement needs.
Product Specifications
Technical Specs Body Material
316 Stainless Steel
Technical Specs Bonnet Material
316 Stainless

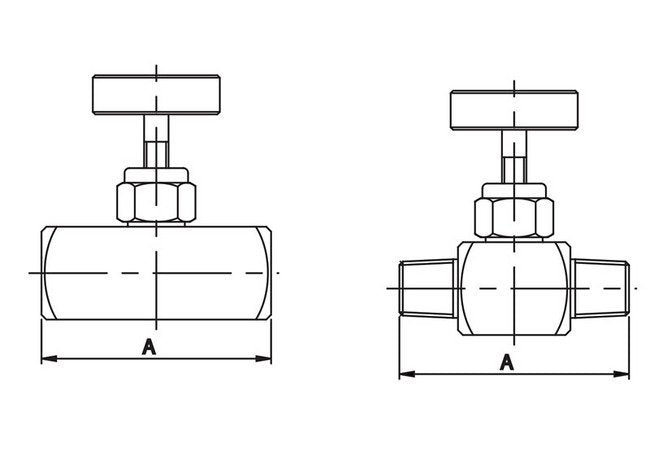

Technical Specs Dimension A
1.85 in
Technical Specs Dimension B
0.47 in
Technical Specs Dimension C
1.97 in
Technical Specs Dimension D
1.02 in
Technical Specs Dimension E
0.75 in
Technical Specs Handle Material
304 Stainless
Technical Specs Material
Stainless Steel
Technical Specs Pressure Rating
6000 psi
Technical Specs Size
1/4 x 1/4 in
Technical Specs Stem Material
316 Stainless
Technical Specs Thread Type
Male x Female
