Stainless Steel Round Pin Anchor Shackle

Name: Stainless Steel Round Pin Anchor Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-dd1d80
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-dd1d80

Durable Stainless Steel Round Pin Anchor Shackle for saltwater use, WLL 1500 lb, meets Fed Spec RR-C-271, Type IVA standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

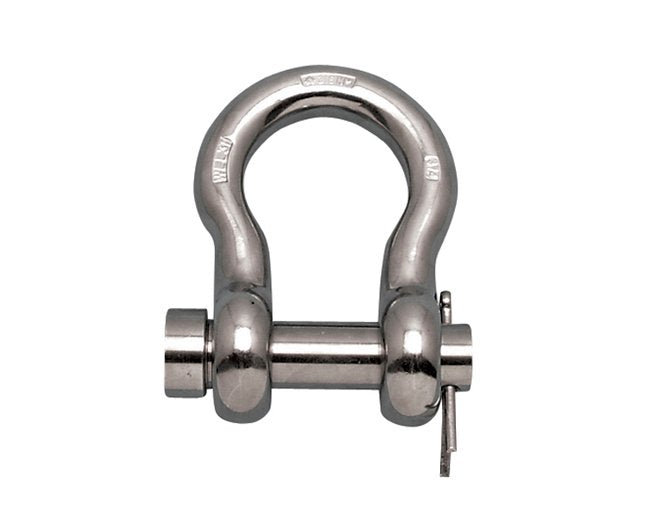

Crafted from premium grade 316-NM stainless steel, the Stainless Steel Round Pin Anchor Shackle with an oversize round pin is designed for durability in saltwater environments. Perfect for securing anchors to chains or swivels, this Suncor exclusive shackle is drop forged and meets Class 1 specifications of Fed Spec RR-C-271. With a working load limit of 1500 lb, this shackle guarantees reliable performance while adhering to MIL-DTL-32655 and Type IVA standards. Import made, this shackle ensures robustness and longevity.

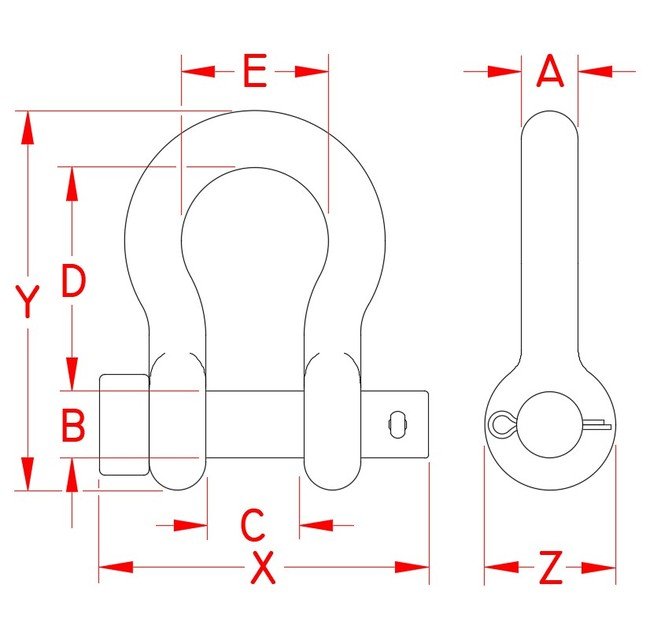

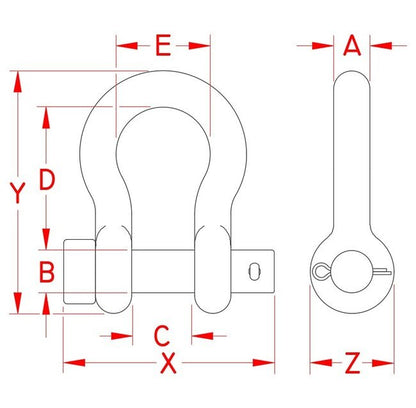

Product Specifications

Specifications Dimension A

3/8 in

Specifications Dimension B

0.44 in

Specifications Dimension C

0.66 in

Specifications Dimension D

1.41 in

Specifications Dimension E

1.00 in

Specifications Dimension X

2.01 in

Specifications Dimension Y

2.44 in

Specifications Dimension Z

0.89 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

0.29 lb

Specifications Working Load Limit Wll

1500 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
