Stainless Steel Round Pin Anchor Shackle - Suncor 316

Stainless Steel Round Pin Anchor Shackle - Suncor 316

SKU:STA-6d0a84

Durable Stainless Steel Round Pin Anchor Shackle with 6,000 lb WLL. Ideal for saltwater applications. Meets Fed Spec RR-C-271, Type IVA, Class 1.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

Stainless Steel Round Pin Anchor Shackle - Suncor 316

Stainless Steel Round Pin Anchor Shackle - Suncor 316

$34.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Round Pin Anchor Shackle - Suncor 316

Stainless Steel Round Pin Anchor Shackle - Suncor 316

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

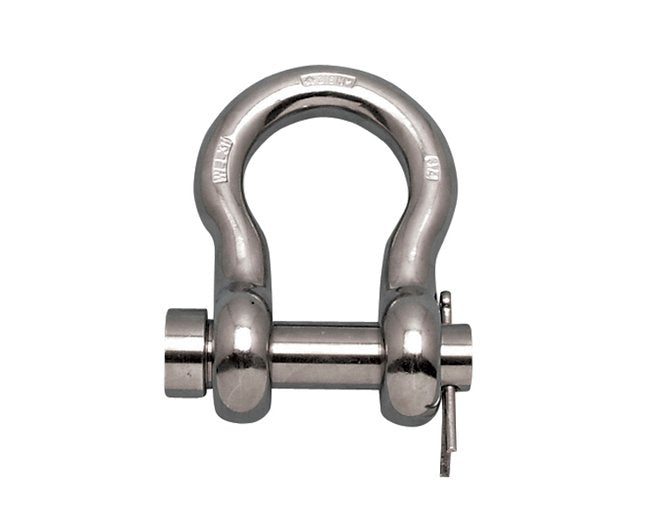

Meet the Stainless Steel Round Pin Anchor Shackle, meticulously crafted from grade 316 stainless steel for unparalleled durability in saltwater environments. Featuring an oversize round pin, it excels at securely connecting anchors to chains or swivels. With a robust Working Load Limit of 6,000 lb, this Suncor-exclusive shackle is drop forged, meeting rigorous federal specifications like Fed Spec RR-C-271, Type IVA, Class 1, and MIL-DTL-32655. Dependable, load-rated, and Mil. Spec-compliant, the Stainless Steel Round Pin Anchor Shackle is your trusted maritime companion.

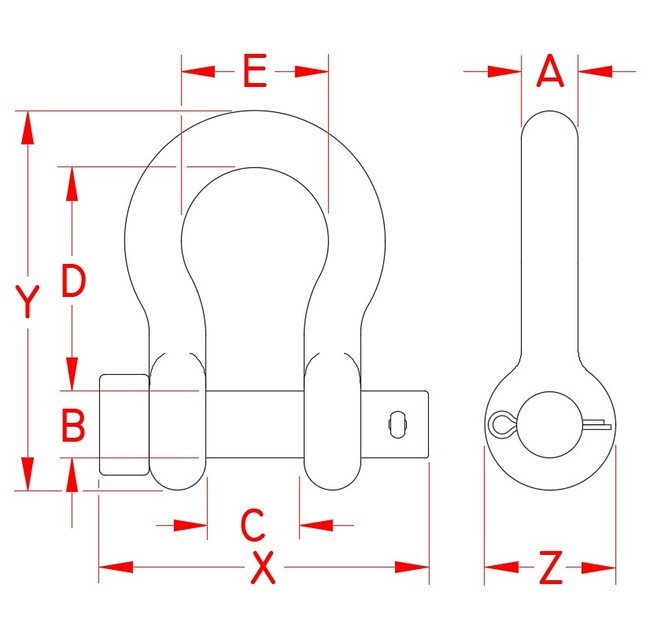

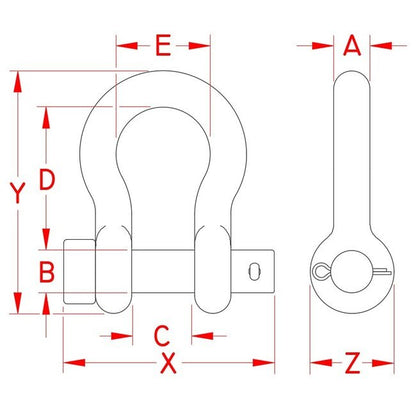

Product Specifications

Specifications Dimension A
3/4 in
Specifications Dimension B
0.88 in
Specifications Dimension C
1.25 in
Specifications Dimension D
2.84 in
Specifications Dimension E
1.90 in
Specifications Dimension X
3.72 in
Specifications Dimension Y
4.87 in
Specifications Dimension Z
1.74 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
2.15 lb
Specifications Working Load Limit Wll
6,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
