Stainless Steel Round Pin Chain Shackle - Suncor 316-NM

Name: Stainless Steel Round Pin Chain Shackle - Suncor 316-NM
Brand: Suncor Stainless, Inc.
SKU: STA-72f1e4
Price: 39.99 USD
Availability: OutOfStock

SKU:STA-72f1e4

Durable stainless steel round pin chain shackle with 6,000 lb WLL, meeting Class 1 specs. Ideal for industrial & marine use.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

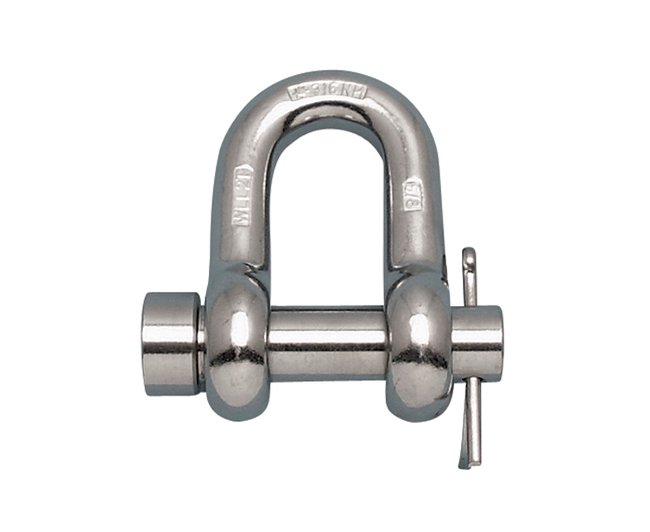

Upgrade your industrial and marine operations with the Suncor stainless steel round pin chain shackle, meticulously crafted from grade 316-NM stainless steel for unparalleled corrosion resistance. This drop forged shackle boasts a 6,000 lb working load limit, meeting stringent Class 1 specifications outlined in Fed Spec RR-C-271 and MIL-DTL-32655 Type IVB. Ensure durability and reliability in challenging environments with this Suncor exclusive shackle.

Product Specifications

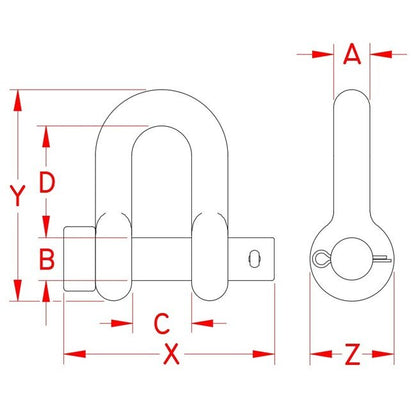

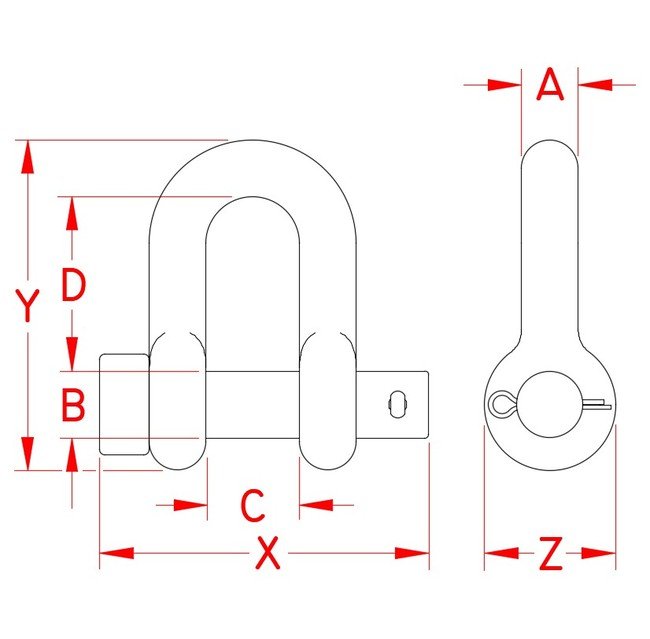

Specifications Dimension A

3/4 in

Specifications Dimension B

0.88 in

Specifications Dimension C

1.20 in

Specifications Dimension D

2.40 in

Specifications Dimension X

3.76 in

Specifications Dimension Y

4.35 in

Specifications Dimension Z

1.75 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

1.98 lb

Specifications Working Load Limit Wll

6,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
