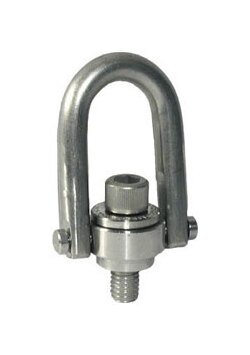

Stainless Steel Safety Engineered Hoist Ring - Inch
Stainless Steel Safety Engineered Hoist Ring - Inch
SKU:HOI-ed6e6f
Premium Stainless Steel Hoist Ring - 5:1 Safety Factor, 360° Swivel, 180° Pivot. NDT-tested & MIL-S-5002 purified. Ideal for corrosive environments.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Stainless Steel Safety Engineered Hoist Ring - Inch
$89.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Safety Engineered Hoist Ring - Inch
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Stainless Steel Safety Engineered Hoist Ring is meticulously engineered to exceed industry standards. Made from 300 series stainless steel, it offers a 5:1 safety factor with a 360° swivel and 180° pivot. NDT-tested per ASTM-E 1417 and purified to MIL-S-5002 standards. Ideal for corrosive or cryogenic environments. This hoist ring guarantees durability and reliability in demanding applications.
Product Specifications
Specifications A Radius
1.40 in
Specifications B Base Height
1.22 in
Specifications Country Of Origin
US
Specifications C Ring Width
3.25 in
Specifications D Diameter
0.75 in
Specifications E Thread Length
1.53 in
Specifications Finish
Stainless Steel
Specifications F Height
4.78 in
Specifications G Thread Size
3/4-10
Specifications Height Tolerance
± 0.060 in
Specifications H Inside Clearance
2.06 in
Specifications I Overall Width
3.52 in
Specifications J
1.5 in
Specifications Material
300 Stainless Steel
Specifications Overall Width Tolerance
± 0.060 in
Specifications Pivot
180 º
Specifications Ps Load Rated
2500 Pounds (1134 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications Thread Length Tolerance
± 0.060 in
Specifications Torque
50.00 lb·ft
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
2 lb. 9 oz
