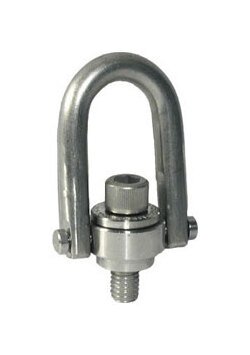

Stainless Steel Safety Engineered Hoist Rings
Stainless Steel Safety Engineered Hoist Rings
SKU:HOI-c31476
Engineered for stability and safety with 360° swivel, 180° pivot, 5:1 safety factor. Ideal for corrosive environments.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Stainless Steel Safety Engineered Hoist Rings
$89.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Safety Engineered Hoist Rings
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Safety Engineered Hoist Rings - Inch are meticulously engineered to meet stringent standards, ensuring exceptional reliability and safety. Crafted from 300 Series Stainless Steel, these hoist rings boast a 5:1 safety factor, 360° swivel, and 180° pivot capabilities. With NDT compliance per ASTM-E 1417, clean passivation per MIL-S-5002, and load-rated at 3500 pounds, these hoist rings are ideal for corrosive, cryogenic, or elevated temperature environments.
Product Specifications
Specifications A Radius
1.40 in
Specifications B Base Height
1.71 in
Specifications Country Of Origin
US
Specifications C Ring Width
4.80 in
Specifications D Diameter
1.00 in
Specifications E Thread Length
1.04 in
Specifications Finish
Stainless Steel
Specifications F Height
8.11 in
Specifications G Thread Size
3/4-10
Specifications Height Tolerance
± 0.060 in
Specifications H Inside Clearance
4.65 in
Specifications I Overall Width
5.14 in
Specifications J
2.37 in
Specifications Material
300 Stainless Steel
Specifications Overall Width Tolerance
± 0.060 in
Specifications Pivot
180 º
Specifications Ps Load Rated
3500 Pounds (1588 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications Thread Length Tolerance
± 0.060 in
Specifications Torque
50.00 lb·ft
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
7 lb. 4 oz
