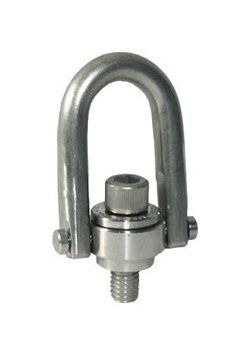

Stainless Steel Safety Engineered Hoist Rings - 300 Series
Stainless Steel Safety Engineered Hoist Rings - 300 Series
SKU:HOI-ef0f7f
Precision-engineered Stainless Steel Hoist Rings with 5:1 safety factor, 360° swivel, and 180° pivot. ASTM-E 1417 tested.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Stainless Steel Safety Engineered Hoist Rings - 300 Series
$129.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Safety Engineered Hoist Rings - 300 Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Stainless Steel Safety Engineered Hoist Rings are meticulously engineered to meet stringent industrial standards. Crafted from high-grade 300 series stainless steel, these hoist rings offer a 5:1 safety factor and a 360° swivel with a 180° pivot range. Each ring undergoes 100% liquid penetrate testing as per ASTM-E 1417, ensuring top-notch quality. Ideal for corrosive, cryogenic, or elevated temperature environments, these hoist rings guarantee reliable performance and durability in diverse applications.
Product Specifications
Specifications A Radius
1.40 in
Specifications B Base Height
1.71 in
Specifications Country Of Origin
US
Specifications C Ring Width
4.80 in
Specifications D Diameter
1.00 in
Specifications E Thread Length
1.54 in
Specifications Finish
Stainless Steel
Specifications F Height
6.52 in
Specifications G Thread Size
1-8
Specifications Height Tolerance
± 0.060 in
Specifications H Inside Clearance
2.81 in
Specifications I Overall Width
5.14 in
Specifications J
2.37 in
Specifications Material
300 Stainless Steel
Specifications Overall Width Tolerance
± 0.060 in
Specifications Pivot
180 º
Specifications Ps Load Rated
5000 Pounds (2268 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications Thread Length Tolerance
± 0.060 in
Specifications Torque
115.00 lb·ft
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
7.00 lb
