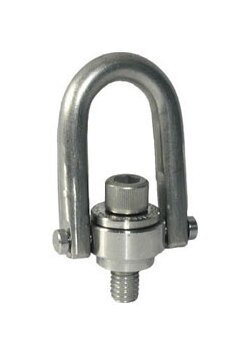

Stainless Steel Safety Engineered Hoist Rings - Inch
Stainless Steel Safety Engineered Hoist Rings - Inch
SKU:HOI-24098e
Reliable Stainless Steel Safety Engineered Hoist Rings with 5:1 safety factor, ideal for corrosive environments. Tested & passivated for durability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Stainless Steel Safety Engineered Hoist Rings - Inch
$129.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Safety Engineered Hoist Rings - Inch
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Stainless Steel Safety Engineered Hoist Rings - Inch are meticulously engineered to meet strict standards, featuring a 5:1 safety factor and 360° swivel with 180° pivot capabilities. Crafted from 300 Series Stainless Steel, these hoist rings are ideal for corrosive, cryogenic, or elevated temperature environments. Tested per ASTM-E 1417, cleaned & passivated per MIL-S-5002, these rings are reliable and durable for various applications.
Product Specifications
Specifications A Radius
0.88 in
Specifications B Base Height
1.22 in
Specifications Country Of Origin
US
Specifications C Ring Width
3.25 in
Specifications D Diameter
0.75 in
Specifications E Thread Length
1.03 in
Specifications Finish
Stainless Steel
Specifications F Height
4.78 in
Specifications G Thread Size
1/2-13
Specifications Height Tolerance
± 0.060 in
Specifications H Inside Clearance
2.31 in
Specifications I Overall Width
3.52 in
Specifications J
1.5 in
Specifications Material
Stainless Steel
Specifications Overall Width Tolerance
± 0.060 in
Specifications Pivot
180 º
Specifications Ps Load Rated
1250 Pounds (567 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications Thread Length Tolerance
± 0.060 in
Specifications Torque
14.00 lb·ft
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
2 lb. 5 oz
